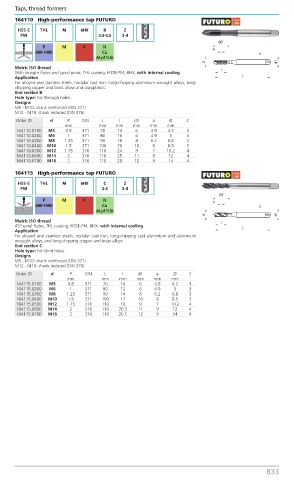

Page 842 - Benma | Blue book 5.0

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
164110 High-performance tap FUTURO

HSS-E THL M 6HX B Z
PM 3.5-5.5 3-4
P M K N
600-1400 Cu
AI≤4%Si
Metric ISO thread
With straight flutes and spiral point, THL coating, HSSE-PM, 6HX, with internal cooling.
Application
For alloyed and stainless steels, nodular cast iron, long-chipping aluminium wrought alloys, long-
chipping copper and brass alloys and duroplasics.
End section B
Hole type: For through holes.
Designs
M5 - M10: shank reinforced (DIN 371)
M12 - M16: shank reduced (DIN 376)
Order ID d P DIN L l d1 a Ø Z
mm mm mm mm mm mm
164110.0100 M5 0.8 371 70 14 6 4.9 4.2 3
164110.0200 M6 1 371 80 16 6 4.9 5 3
164110.0300 M8 1.25 371 90 18 8 6.2 6.8 3
164110.0400 M10 1.5 371 100 20 10 8 8.5 3
164110.0500 M12 1.75 376 110 24 9 7 10.2 4
164110.0600 M14 2 376 110 25 11 9 12 4
164110.0700 M16 2 376 110 28 12 9 14 4
164115 High-performance tap FUTURO
HSS-E THL M 6HX C Z
PM 2-3 3-4

P M K N
600-1400 Cu
AI≤4%Si
Metric ISO thread
45° spiral flutes, THL coating, HSSE-PM, 6HX, with internal cooling.
Application
For alloyed and stainless steels, nodular cast iron, long-chipping cast aluminium and aluminium
wrought alloys, and long-chipping copper and brass alloys.
End section C
Hole type: For blind holes.
Designs
M5 - M10: shank reinforced (DIN 371)
M12 - M16: shank reduced (DIN 376)
Order ID d P DIN L l d1 a Ø Z
mm mm mm mm mm mm
164115.0100 M5 0.8 371 70 10 6 4.9 4.2 3
164115.0200 M6 1 371 80 12 6 4.9 5 3
164115.0300 M8 1.25 371 90 14 8 6.2 6.8 3
164115.0400 M10 1.5 371 100 17 10 8 8.5 3
164115.0500 M12 1.75 376 110 18 9 7 10.2 4
164115.0600 M14 2 376 110 20.5 11 9 12 4
164115.0700 M16 2 376 110 20.5 12 9 14 4

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 833
