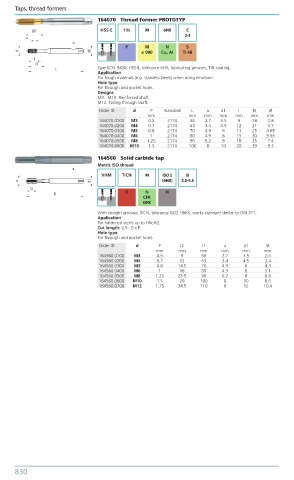

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
164070 Thread former PROTOTYP

HSS-E TiN M 6HX C
2-3
P M N S
≤ 900 Cu, AI Ti-Ni

Type ECO-INOX, HSS-E, tolerance 6HX, lubricating grooves, TIN coating.
Application
For tough materials (e.g. stainless steels) when using emulsion.
Hole type
For through and pocket holes.
Designs
M3...M10: Reinforced shaft.
M12: Falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
164070.0100 M3 0.5 2174 56 2.7 3.5 9 18 2.8
164070.0200 M4 0.7 2174 63 3.4 4.5 12 21 3.7
164070.0300 M5 0.8 2174 70 4.9 6 13 25 4.65
164070.0400 M6 1 2174 80 4.9 6 15 30 5.55
164070.0500 M8 1.25 2174 90 6.2 8 18 35 7.4
164070.0600 M10 1.5 2174 100 8 10 20 39 9.3
164560 Solid carbide tap
Metric ISO thread
VHM TiCN M ISO 2 B
(6HX) 3.5-5.5
K N H
CFK
GFK
With straight grooves, TiCN, tolerance ISO2 / 6HX, works standard similar to DIN 371.
Application
For hardened steels up to HRc 62.
Cut length: 2.5...5 x P
Hole type
For through and pocket holes.
Order ID d P l2 l1 a d1 Ø
mm mm mm mm mm mm
164560.0100 M3 0.5 9 56 2.7 3.5 2.6
164560.0200 M4 0.7 12 63 3.4 4.5 3.4
164560.0300 M5 0.8 14.5 70 4.9 6 4.3
164560.0400 M6 1 18 80 4.9 6 5.1
164560.0500 M8 1.25 23.5 90 6.2 8 6.9
164560.0600 M10 1.5 29 100 8 10 8.6
164560.0700 M12 1.75 34.5 110 9 12 10.4

830 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
