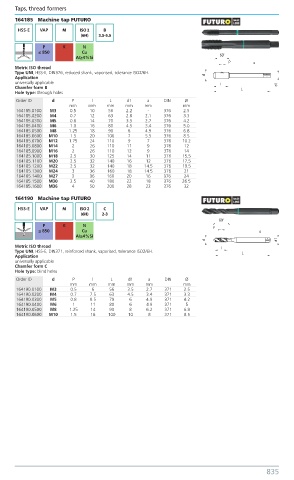

Page 844 - Benma | Blue book 5.0

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
164185 Machine tap FUTURO

HSS-E VAP M ISO 2 B
(6H) 3.5-5.5
P K N
≤ 850 Cu
AI≥4%Si
Metric ISO thread
Type UNI, HSS-E, DIN376, reduced shank, vaporised, tolerance ISO2/6H.
Application
universally applicable
Chamfer form B
Hole type: through holes
Order ID d P l L d1 a DIN Ø
mm mm mm mm mm mm
164185.0100 M3 0.5 10 56 2.2 - 376 2.5
164185.0200 M4 0.7 12 63 2.8 2.1 376 3.3
164185.0300 M5 0.8 14 70 3.5 2.7 376 4.2
164185.0400 M6 1.0 16 80 4.5 3.4 376 5.0
164185.0500 M8 1.25 18 90 6 4.9 376 6.8
164185.0600 M10 1.5 20 100 7 5.5 376 8.5
164185.0700 M12 1.75 24 110 9 7 376 10.2
164185.0800 M14 2 26 110 11 9 376 12
164185.0900 M16 2 26 110 12 9 376 14
164185.1000 M18 2.5 30 125 14 11 376 15.5
164185.1100 M20 2.5 32 140 16 12 376 17.5
164185.1200 M22 2.5 32 140 18 14.5 376 19.5
164185.1300 M24 3 36 160 18 14.5 376 21
164185.1400 M27 3 36 160 20 16 376 24
164185.1500 M30 3.5 40 180 22 18 376 26.5
164185.1600 M36 4 50 200 28 22 376 32
164190 Machine tap FUTURO
HSS-E VAP M ISO 2 C
(6H) 2-3

P K N
≤ 850 Cu
AI≥4%Si
Metric ISO thread
Type UNI, HSS-E, DIN371, reinforced shank, vaporised, tolerance ISO2/6H.
Application
universally applicable
Chamfer form C
Hole type: blind holes
Order ID d P l L d1 a DIN Ø
mm mm mm mm mm mm
164190.0100 M3 0.5 6 56 3.5 2.7 371 2.5
164190.0200 M4 0.7 7.5 63 4.5 3.4 371 3.3
164190.0300 M5 0.8 8.5 70 6 4.9 371 4.2
164190.0400 M6 1 11 80 6 4.9 371 5
164190.0500 M8 1.25 14 90 8 6.2 371 6.8
164190.0600 M10 1.5 16 100 10 8 371 8.5

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 835
