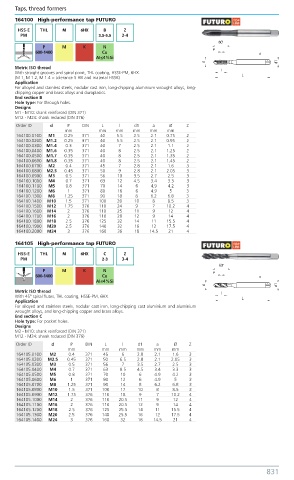

164100 High-performance tap FUTURO

HSS-E THL M 6HX B Z
PM 3.5-5.5 2-4
P M K N
600-1400 Cu
AI≤4%Si
Metric ISO thread
With straight grooves and spiral point, THL coating, HSSE-PM, 6HX.
(M 1, M 1.2, M 1.4 = tolerance 5 HX and material HSSK)
Application
For alloyed and stainless steels, nodular cast iron, long-chipping aluminium wrought alloys, long-
chipping copper and brass alloys and duroplasics.
End section B
Hole type: For through holes.
Designs
M1 - M10: shank reinforced (DIN 371)
M12 - M24: shank reduced (DIN 376)
Order ID d P DIN L l d1 a Ø Z
mm mm mm mm mm mm
164100.0100 M1 0.25 371 40 5.5 2.5 2.1 0.75 2
164100.0200 M1.2 0.25 371 40 5.5 2.5 2.1 0.95 2
164100.0300 M1.4 0.3 371 40 7 2.5 2.1 1.1 2
164100.0400 M1.6 0.35 371 40 8 2.5 2.1 1.25 2
164100.0500 M1.7 0.35 371 40 8 2.5 2.1 1.35 2
164100.0600 M1.8 0.35 371 40 8 2.5 2.1 1.45 2
164100.0700 M2 0.4 371 45 7 2.8 2.1 1.6 3
164100.0800 M2.5 0.45 371 50 9 2.8 2.1 2.05 3
164100.0900 M3 0.5 371 56 10 3.5 2.7 2.5 3
164100.1000 M4 0.7 371 63 12 4.5 3.4 3.3 3
164100.1100 M5 0.8 371 70 14 6 4.9 4.2 3
164100.1200 M6 1 371 80 16 6 4.9 5 3
164100.1300 M8 1.25 371 90 18 8 6.2 6.8 3
164100.1400 M10 1.5 371 100 20 10 8 8.5 3
164100.1500 M12 1.75 376 110 24 9 7 10.2 4
164100.1600 M14 2 376 110 25 11 9 12 4
164100.1700 M16 2 376 110 28 12 9 14 4
164100.1800 M18 2.5 376 125 32 14 11 15.5 4
164100.1900 M20 2.5 376 140 32 16 12 17.5 4
164100.2000 M24 3 376 160 36 18 14.5 21 4
164105 High-performance tap FUTURO
HSS-E THL M 6HX C Z
PM 2-3 3-4
P M K N
600-1400 Cu
AI≤4%Si
Metric ISO thread
With 45° spiral flutes, THL coating, HSSE-PM, 6HX.
Application
For alloyed and stainless steels, nodular cast iron, long-chipping cast aluminium and aluminium
wrought alloys, and long-chipping copper and brass alloys.
End section C
Hole type: For pocket holes.
Designs
M2 - M10: shank reinforced (DIN 371)
M12 - M24: shank reduced (DIN 376)
Order ID d P DIN L l d1 a Ø Z
mm mm mm mm mm mm
164105.0100 M2 0.4 371 45 6 2.8 2.1 1.6 3
164105.0200 M2.5 0.45 371 50 6.5 2.8 2.1 2.05 3
164105.0300 M3 0.5 371 56 7 3.5 2.7 2.5 3
164105.0400 M4 0.7 371 63 8.5 4.5 3.4 3.3 3
164105.0500 M5 0.8 371 70 10 6 4.9 4.2 3
164105.0600 M6 1 371 80 12 6 4.9 5 3
164105.0700 M8 1.25 371 90 14 8 6.2 6.8 3
164105.0800 M10 1.5 371 100 17 10 8 8.5 3
164105.0900 M12 1.75 376 110 18 9 7 10.2 4
164105.1000 M14 2 376 110 20.5 11 9 12 4
164105.1100 M16 2 376 110 20.5 12 9 14 4
164105.1200 M18 2.5 376 125 25.5 14 11 15.5 4
164105.1300 M20 2.5 376 140 25.5 16 12 17.5 4
164105.1400 M24 3 376 160 32 18 14.5 21 4
