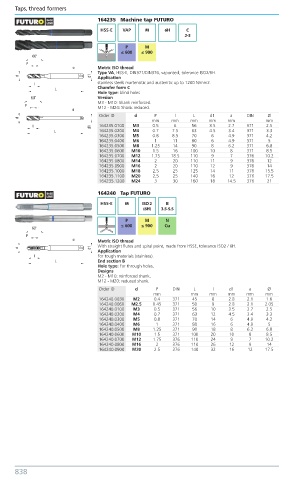

1 64235 Machine tap FUTURO

HSS-E VAP M 6H C
2-3
P M
≤ 600 ≤ 900

Metric ISO thread
Type VA, HSS-E, DIN371/DIN376, vaporised, tolerance ISO2/6H.
Application
stainless steels martensitic and austenitic up to 1200 N/mm2.
Chamfer form C
Hole type: blind holes
Version
M3 - M10: Shank reinforced.
M12 - M24: Shank reduced.
Order ID d P l L d1 a DIN Ø
mm mm mm mm mm mm
164235.0100 M3 0.5 6 56 3.5 2.7 371 2.5
164235.0200 M4 0.7 7.5 63 4.5 3.4 371 3.3
164235.0300 M5 0.8 8.5 70 6 4.9 371 4.2
164235.0400 M6 1 11 80 6 4.9 371 5
164235.0500 M8 1.25 14 90 8 6.2 371 6.8
164235.0600 M10 1.5 16 100 10 8 371 8.5
164235.0700 M12 1.75 18.5 110 9 7 376 10.2
164235.0800 M14 2 20 110 11 9 376 12
164235.0900 M16 2 20 110 12 9 376 14
164235.1000 M18 2.5 25 125 14 11 376 15.5
164235.1100 M20 2.5 25 140 16 12 376 17.5
164235.1200 M24 3 30 160 18 14.5 376 21
1 64240 Tap FUTURO
HSS-E M ISO 2 B
(6H) 3.5-5.5

P M N
≤ 600 ≤ 900 Cu

Metric ISO thread
With straight flutes and spiral point, made from HSSE, tolerance ISO2 / 6H.
Application
For tough materials (stainless).
End section B
Hole type: For through holes.
Designs
M2 - M10: reinforced shank.
M12 - M20: reduced shank.
Order ID d P DIN L l d1 a Ø
mm mm mm mm mm mm
164240.0030 M2 0.4 371 45 8 2.8 2.1 1.6
164240.0060 M2.5 0.45 371 50 9 2.8 2.1 2.05
164240.0100 M3 0.5 371 56 10 3.5 2.7 2.5
164240.0200 M4 0.7 371 63 12 4.5 3.4 3.3
164240.0300 M5 0.8 371 70 14 6 4.9 4.2
164240.0400 M6 1 371 80 16 6 4.9 5
164240.0500 M8 1.25 371 90 18 8 6.2 6.8
164240.0600 M10 1.5 371 100 20 10 8 8.5
164240.0700 M12 1.75 376 110 24 9 7 10.2
164240.0800 M16 2 376 110 26 12 9 14
164240.0900 M20 2.5 376 140 32 16 12 17.5
