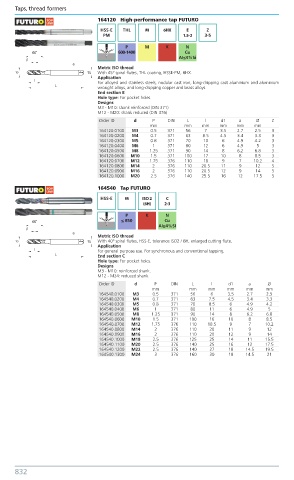

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
164120 High-performance tap FUTURO

HSS-E THL M 6HX E Z
PM 1.5-2 3-5
P M K N
600-1400 Cu
AI≤4%Si
Metric ISO thread
With 45° spiral flutes, THL coating, HSSE-PM, 6HX.
Application
For alloyed and stainless steels, nodular cast iron, long-chipping cast aluminium and aluminium
wrought alloys, and long-chipping copper and brass alloys.
End section E
Hole type: For pocket holes.
Designs
M3 - M10: shank reinforced (DIN 371)
M12 - M20: shank reduced (DIN 376)
Order ID d P DIN L l d1 a Ø Z
mm mm mm mm mm mm
164120.0100 M3 0.5 371 56 7 3.5 2.7 2.5 3
164120.0200 M4 0.7 371 63 8.5 4.5 3.4 3.3 3
164120.0300 M5 0.8 371 70 10 6 4.9 4.2 3
164120.0400 M6 1 371 80 12 6 4.9 5 3
164120.0500 M8 1.25 371 90 14 8 6.2 6.8 3
164120.0600 M10 1.5 371 100 17 10 8 8.5 3
164120.0700 M12 1.75 376 110 18 9 7 10.2 4
164120.0800 M14 2 376 110 20.5 11 9 12 5
164120.0900 M16 2 376 110 20.5 12 9 14 5
164120.1000 M20 2.5 376 140 25.5 16 12 17.5 5
164540 Tap FUTURO
HSS-E M ISO 2 C
(6H) 2-3

P K N
≤ 850 Cu
AI≥4%Si
Metric ISO thread
With 40° spiral flutes, HSS-E, tolerance ISO2 / 6H, enlarged cutting flute.
Application
For general purpose use. For synchronous and conventional tapping.
End section C
Hole type: For pocket holes.
Designs
M3 - M10: reinforced shank.
M12 - M24: reduced shank.
Order ID d P DIN L l d1 a Ø
mm mm mm mm mm mm
164540.0100 M3 0.5 371 56 6 3.5 2.7 2.5
164540.0200 M4 0.7 371 63 7.5 4.5 3.4 3.3
164540.0300 M5 0.8 371 70 8.5 6 4.9 4.2
164540.0400 M6 1 371 80 11 6 4.9 5
164540.0500 M8 1.25 371 90 14 8 6.2 6.8
164540.0600 M10 1.5 371 100 16 10 8 8.5
164540.0700 M12 1.75 376 110 18.5 9 7 10.2
164540.0800 M14 2 376 110 20 11 9 12
164540.0900 M16 2 376 110 20 12 9 14
164540.1000 M18 2.5 376 125 25 14 11 15.5
164540.1100 M20 2.5 376 140 25 16 12 17.5
164540.1200 M22 2.5 376 140 27 18 14.5 19.5
164540.1300 M24 3 376 160 30 18 14.5 21

832 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
