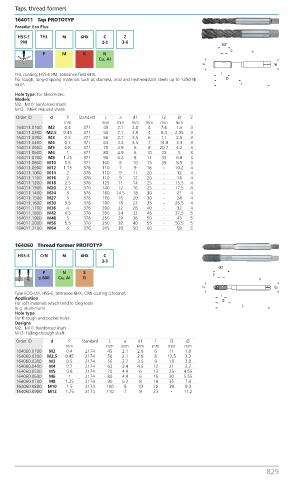

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
164011 Tap PROTOTYP
Paradur Eco Plus
HSS-E THL M 6HX C Z
PM 2-3 3-6
P M K N
Cu, AI

THL coating, HSS-E PM, tolerance field 6HX.
For tough, long-chipping materials such as stainless, acid and heat-resistant steels up to 1250 N/
mm².
Hole type: for blind holes.
Models
M2...M10: reinforced shank
M12...M64: reduced shank
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
164011.0100 M2 0.4 371 45 2.1 2.8 4 7.6 1.6 3
164011.0200 M2.5 0.45 371 50 2.1 2.8 4 9.3 2.05 3
164011.0300 M3 0.5 371 56 2.7 3.5 6 11 2.5 3
164011.0400 M4 0.7 371 63 3.4 4.5 7 14.8 3.3 3
164011.0500 M5 0.8 371 70 4.9 6 8 20.7 4.2 3
164011.0600 M6 1 371 80 4.9 6 10 25 5 3
164011.0700 M8 1.25 371 90 6.2 8 12 35 6.8 3
164011.0800 M10 1.5 371 100 8 10 15 39 8.5 3
164011.0900 M12 1.75 376 110 7 9 16 - 10.2 4
164011.1000 M14 2 376 110 9 11 20 - 12 4
164011.1100 M16 2 376 110 9 12 20 - 14 4
164011.1200 M18 2.5 376 125 11 14 25 - 15.5 4
164011.1300 M20 2.5 376 140 12 16 25 - 17.5 4
164011.1400 M24 3 376 160 14.5 18 30 - 21 4
164011.1500 M27 3 376 160 16 20 30 - 24 4
164011.1600 M30 3.5 376 180 18 22 35 - 26.5 4
164011.1700 M36 4 376 200 22 28 40 - 32 4
164011.1800 M42 4.5 376 200 24 32 45 - 37.5 5
164011.1900 M48 5 376 250 29 36 50 - 43 5
164011.2000 M56 5.5 376 250 32 40 55 - 50.5 5
164011.2100 M64 6 376 315 39 50 60 - 58 6

164060 Thread former PROTOTYP
HSS-E CrN M 6HX C
2-3
P N S
≤ 600 Cu, AI Ti

Type ECO-LM, HSS-E, tolerance 6HX, CRN coating (chrome).
Application
For soft materials which tend to clog tools
(e.g. aluminium).
Hole type
For through and pocket holes.
Designs
M2...M10: Reinforced shaft.
M12: Falling-through shaft.
Order ID d P Standard L a d1 l l3 Ø
mm mm mm mm mm mm mm
164060.0100 M2 0.4 2174 45 2.1 2.8 6 11 1.8
164060.0200 M2.5 0.45 2174 50 2.1 2.8 8 12.5 2.3
164060.0300 M3 0.5 2174 56 2.7 3.5 9 18 2.8
164060.0400 M4 0.7 2174 63 3.4 4.5 12 21 3.7
164060.0500 M5 0.8 2174 70 4.9 6 13 25 4.65
164060.0600 M6 1 2174 80 4.9 6 15 30 5.55
164060.0700 M8 1.25 2174 90 6.2 8 18 35 7.4
164060.0800 M10 1.5 2174 100 8 10 20 39 9.3
164060.0900 M12 1.75 2174 110 7 9 23 - 11.2
