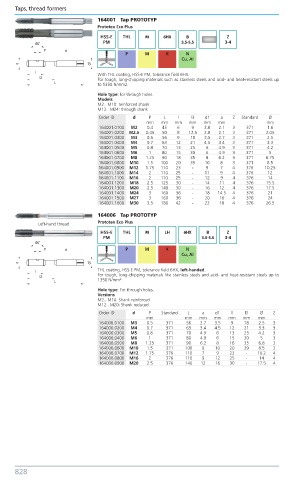

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
164001 Tap PROTOTYP
Prototex Eco Plus
HSS-E THL M 6HX B Z
PM 3.5-5.5 3-4
P M K N
Cu, AI

With THL coating, HSS-E PM, tolerance field 6HX.
For tough, long-chipping materials such as stainless steels and acid- and heat-resistant steels up
to 1350 N/mm2.
Hole type: for through holes.
Models
M2...M10: reinforced shank
M12...M24: through shank
Order ID d P L l l3 d1 a Z Standard Ø
mm mm mm mm mm mm mm
164001.0100 M2 0.4 45 6 9 2.8 2.1 3 371 1.6
164001.0200 M2.5 0.45 50 8 12.5 2.8 2.1 3 371 2.05
164001.0300 M3 0.5 56 9 18 3.5 2.7 3 371 2.5
164001.0400 M4 0.7 63 12 21 4.5 3.4 3 371 3.3
164001.0500 M5 0.8 70 13 25 6 4.9 3 371 4.2
164001.0600 M6 1 80 15 30 6 4.9 3 371 5
164001.0700 M8 1.25 90 18 35 8 6.2 3 371 6.75
164001.0800 M10 1.5 100 20 39 10 8 3 371 8.5
164001.0900 M12 1.75 110 23 - 9 7 4 376 10.25
164001.1000 M14 2 110 25 - 11 9 4 376 12
164001.1100 M16 2 110 25 - 12 9 4 376 14
164001.1200 M18 2.5 125 30 - 14 11 4 376 15.5
164001.1300 M20 2.5 140 30 - 16 12 4 376 17.5
164001.1400 M24 3 160 36 - 18 14.5 4 376 21
164001.1500 M27 3 160 36 - 20 16 4 376 24
164001.1600 M30 3.5 180 42 - 22 18 4 376 26.5

164006 Tap PROTOTYP
Left-hand thread Prototex Eco Plus
HSS-E THL M LH 6HX B Z
PM 3.5-5.5 3-4

P M K N
Cu, AI

THL coating, HSS-E PM, tolerance field 6HX, left-handed.
For tough, long-chipping materials like stainless steels and acid- and heat-resistant steels up to
1350 N/mm².
Hole type: For through holes.
Versions
M2...M10: Shank reinforced
M12...M20: Shank reduced
Order ID d P Standard L a d1 l l3 Ø Z
mm mm mm mm mm mm mm
164006.0100 M3 0.5 371 56 2.7 3.5 9 18 2.5 3
164006.0200 M4 0.7 371 63 3.4 4.5 12 21 3.3 3
164006.0300 M5 0.8 371 70 4.9 6 13 25 4.2 3
164006.0400 M6 1 371 80 4.9 6 15 30 5 3
164006.0500 M8 1.25 371 90 6.2 8 18 35 6.8 3
164006.0600 M10 1.5 371 100 8 10 20 39 8.5 3
164006.0700 M12 1.75 376 110 7 9 23 - 10.2 4
164006.0800 M16 2 376 110 9 12 25 - 14 4
164006.0900 M20 2.5 376 140 12 16 30 - 17.5 4

828 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
