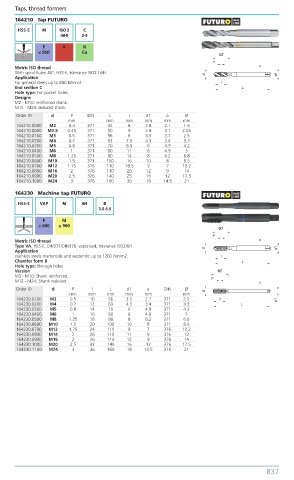

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
164210 Tap FUTURO

HSS-E M ISO 2 C
(6H) 2-3
P K N
≤ 850 Cu

Metric ISO thread
With spiral flutes 40°, HSS-E, tolerance ISO2 / 6H.
Application
For general steels up to 800 N/mm2.
End section C
Hole type: For pocket holes.
Designs
M2 - M10: reinforced shank.
M12 - M24: reduced shank.
Order ID d P DIN L l d1 a Ø
mm mm mm mm mm mm
164210.0030 M2 0.4 371 45 8 2.8 2.1 1.6
164210.0060 M2.5 0.45 371 50 9 2.8 2.1 2.05
164210.0100 M3 0.5 371 56 6 3.5 2.7 2.5
164210.0200 M4 0.7 371 63 7.5 4.5 3.4 3.3
164210.0300 M5 0.8 371 70 8.5 6 4.9 4.2
164210.0400 M6 1 371 80 11 6 4.9 5
164210.0500 M8 1.25 371 90 14 8 6.2 6.8
164210.0600 M10 1.5 371 100 16 10 8 8.5
164210.0700 M12 1.75 376 110 18.5 9 7 10.2
164210.0800 M16 2 376 110 20 12 9 14
164210.0900 M20 2.5 376 140 25 16 12 17.5
164210.1000 M24 3 376 160 30 18 14.5 21
164230 Machine tap FUTURO
HSS-E VAP M 6H B
3.5-5.5

P M
≤ 600 ≤ 900

Metric ISO thread
Type VA, HSS-E, DIN371/DIN376, vaporised, tolerance ISO2/6H.
Application
stainless steels martensitic and austenitic up to 1200 N/mm2.
Chamfer form B
Hole type: through holes
Version
M3 - M10: Shank reinforced.
M12 - M24: Shank reduced.
Order ID d P l L d1 a DIN Ø
mm mm mm mm mm mm
164230.0100 M3 0.5 10 56 3.5 2.7 371 2.5
164230.0200 M4 0.7 12 63 4.5 3.4 371 3.3
164230.0300 M5 0.8 14 70 6 4.9 371 4.2
164230.0400 M6 1 16 80 6 4.9 371 5
164230.0500 M8 1.25 18 90 8 6.2 371 6.8
164230.0600 M10 1.5 20 100 10 8 371 8.5
164230.0700 M12 1.75 24 110 9 7 376 10.2
164230.0800 M14 2 26 110 11 9 376 12
164230.0900 M16 2 26 110 12 9 376 14
164230.1000 M20 2.5 32 140 16 12 376 17.5
164230.1100 M24 3 36 160 18 14.5 376 21

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 837
