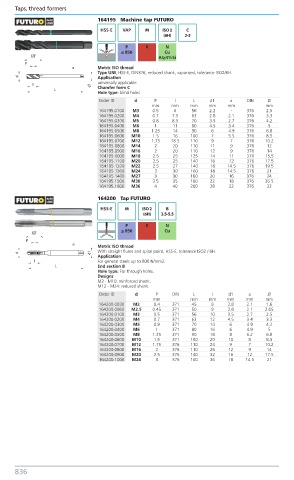

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
164195 Machine tap FUTURO

HSS-E VAP M ISO 2 C
(6H) 2-3
P K N
≤ 850 Cu
AI≥4%Si
Metric ISO thread
Type UNI, HSS-E, DIN376, reduced shank, vaporised, tolerance ISO2/6H.
Application
universally applicable
Chamfer form C
Hole type: blind holes
Order ID d P l L d1 a DIN Ø
mm mm mm mm mm mm
164195.0100 M3 0.5 6 56 2.2 - 376 2.5
164195.0200 M4 0.7 7.5 63 2.8 2.1 376 3.3
164195.0300 M5 0.8 8.5 70 3.5 2.7 376 4.2
164195.0400 M6 1 11 80 4.5 3.4 376 5
164195.0500 M8 1.25 14 90 6 4.9 376 6.8
164195.0600 M10 1.5 16 100 7 5.5 376 8.5
164195.0700 M12 1.75 18.5 110 9 7 376 10.2
164195.0800 M14 2 20 110 11 9 376 12
164195.0900 M16 2 20 110 12 9 376 14
164195.1000 M18 2.5 25 125 14 11 376 15.5
164195.1100 M20 2.5 25 140 16 12 376 17.5
164195.1200 M22 2.5 27 140 18 14.5 376 19.5
164195.1300 M24 3 30 160 18 14.5 376 21
164195.1400 M27 3 30 160 20 16 376 24
164195.1500 M30 3.5 35 180 22 18 376 26.5
164195.1600 M36 4 40 200 28 22 376 32
164200 Tap FUTURO
HSS-E M ISO 2 B
(6H) 3.5-5.5

P K N
≤ 850 Cu

Metric ISO thread
With straight flutes and spiral point, HSS-E, tolerance ISO2 / 6H.
Application
For general steels up to 800 N/mm2.
End section B
Hole type: For through holes.
Designs
M2 - M10: reinforced shank.
M12 - M24: reduced shank.
Order ID d P DIN L l d1 a Ø
mm mm mm mm mm mm
164200.0030 M2 0.4 371 45 8 2.8 2.1 1.6
164200.0060 M2.5 0.45 371 50 9 2.8 2.1 2.05
164200.0100 M3 0.5 371 56 10 3.5 2.7 2.5
164200.0200 M4 0.7 371 63 12 4.5 3.4 3.3
164200.0300 M5 0.8 371 70 14 6 4.9 4.2
164200.0400 M6 1 371 80 16 6 4.9 5
164200.0500 M8 1.25 371 90 18 8 6.2 6.8
164200.0600 M10 1.5 371 100 20 10 8 8.5
164200.0700 M12 1.75 376 110 24 9 7 10.2
164200.0800 M16 2 376 110 26 12 9 14
164200.0900 M20 2.5 376 140 32 16 12 17.5
164200.1000 M24 3 376 160 36 18 14.5 21

836 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
