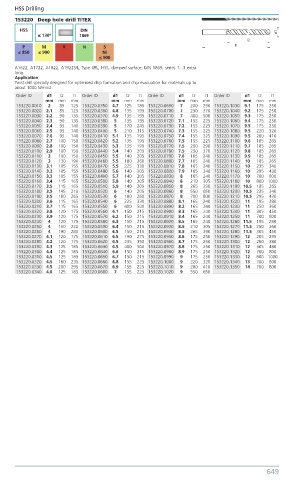

Page 658 - Benma | Blue book 5.0

HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
153220 Deep hole drill TITEX

HSS DIN
α: 130º 1869
P M K N S
≤ 850 ≤ 900 Ni
≤ 900
A1622, A1722, A1822, A1922S/L, Type UFL, HSS, damped surface, DIN 1869, series 1...3 extra
long.
Application
Twist drill specially designed for optimised chip formation and chip evacuation for materials up to
about 1000 N/mm2.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
153220.0010 2 85 125 153220.0350 4.7 125 185 153220.0690 7 200 290 153220.1030 9.1 175 250
153220.0020 2.1 85 125 153220.0360 4.8 135 195 153220.0700 7 250 370 153220.1040 9.2 175 250
153220.0030 2.2 90 135 153220.0370 4.9 135 195 153220.0710 7 400 500 153220.1050 9.3 175 250
153220.0040 2.3 90 135 153220.0380 5 135 195 153220.0720 7.1 155 225 153220.1060 9.4 175 250
153220.0050 2.4 95 140 153220.0390 5 170 245 153220.0730 7.2 155 225 153220.1070 9.5 175 250
153220.0060 2.5 95 140 153220.0400 5 210 315 153220.0740 7.3 155 225 153220.1080 9.5 220 320
153220.0070 2.6 95 140 153220.0410 5.1 135 195 153220.0750 7.4 155 225 153220.1090 9.5 280 410
153220.0080 2.7 100 150 153220.0420 5.2 135 195 153220.0760 7.5 155 225 153220.1100 9.6 185 265
153220.0090 2.8 100 150 153220.0430 5.3 135 195 153220.0770 7.5 200 290 153220.1110 9.7 185 265
153220.0100 2.9 100 150 153220.0440 5.4 140 205 153220.0780 7.5 250 370 153220.1120 9.8 185 265
153220.0110 3 100 150 153220.0450 5.5 140 205 153220.0790 7.6 165 240 153220.1130 9.9 185 265
153220.0120 3 130 190 153220.0460 5.5 180 260 153220.0800 7.7 165 240 153220.1140 10 185 265
153220.0130 3.1 105 155 153220.0470 5.5 225 330 153220.0810 7.8 165 240 153220.1150 10 235 340
153220.0140 3.2 105 155 153220.0480 5.6 140 205 153220.0820 7.9 165 240 153220.1160 10 295 430
153220.0150 3.3 105 155 153220.0490 5.7 140 205 153220.0830 8 165 240 153220.1170 10 700 800
153220.0160 3.4 115 165 153220.0500 5.8 140 205 153220.0840 8 210 305 153220.1180 10 800 1000
153220.0170 3.5 115 165 153220.0510 5.9 140 205 153220.0850 8 265 390 153220.1190 10.5 185 265
153220.0180 3.5 145 210 153220.0520 6 140 205 153220.0860 8 550 650 153220.1200 10.5 235 340
153220.0190 3.5 180 265 153220.0530 6 180 260 153220.0870 8 700 800 153220.1210 10.5 295 430
153220.0200 3.6 115 165 153220.0540 6 225 330 153220.0880 8.1 165 240 153220.1220 11 195 280
153220.0210 3.7 115 165 153220.0550 6 400 500 153220.0890 8.2 165 240 153220.1230 11 250 360
153220.0220 3.8 120 175 153220.0560 6.1 150 215 153220.0900 8.3 165 240 153220.1240 11 305 450
153220.0230 3.9 120 175 153220.0570 6.2 150 215 153220.0910 8.4 165 240 153220.1250 11 700 800
153220.0240 4 120 175 153220.0580 6.3 150 215 153220.0920 8.5 165 240 153220.1260 11.5 195 280
153220.0250 4 150 220 153220.0590 6.4 150 215 153220.0930 8.5 210 305 153220.1270 11.5 250 360
153220.0260 4 190 280 153220.0600 6.5 150 215 153220.0940 8.5 265 390 153220.1280 11.5 305 450
153220.0270 4.1 120 175 153220.0610 6.5 190 275 153220.0950 8.6 175 250 153220.1290 12 205 295
153220.0280 4.2 120 175 153220.0620 6.5 235 350 153220.0960 8.7 175 250 153220.1300 12 260 380
153220.0290 4.3 125 185 153220.0630 6.5 400 500 153220.0970 8.8 175 250 153220.1310 12 305 480
153220.0300 4.4 125 185 153220.0640 6.6 150 215 153220.0980 8.9 175 250 153220.1320 12 700 800
153220.0310 4.5 125 185 153220.0650 6.7 150 215 153220.0990 9 175 250 153220.1330 12 800 1000
153220.0320 4.5 160 235 153220.0660 6.8 155 225 153220.1000 9 220 320 153220.1340 13 700 800
153220.0330 4.5 200 295 153220.0670 6.9 155 225 153220.1010 9 280 410 153220.1350 14 700 800
153220.0340 4.6 125 185 153220.0680 7 155 225 153220.1020 9 550 650
