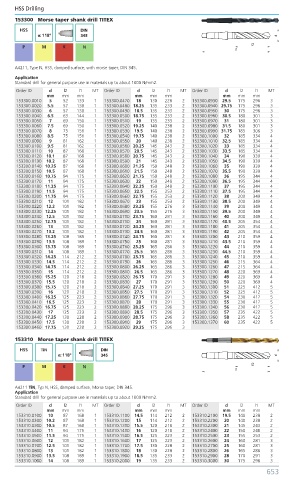

HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
153300 Morse taper shank drill TITEX

HSS DIN
α: 118º 345
P M K N

A4211, Type N, HSS, damped surface; with morse taper; DIN 345.
Application
Standard drill for general purpose use in materials up to about 1000 N/mm2.
Order ID d l2 l1 MT Order ID d l2 l1 MT Order ID d l2 l1 MT
mm mm mm mm mm mm mm mm mm
153300.0010 5 52 133 1 153300.0470 18 130 228 2 153300.0930 29.5 175 296 3
153300.0020 5.5 57 138 1 153300.0480 18.25 135 233 2 153300.0940 29.75 175 296 3
153300.0030 6 57 138 1 153300.0490 18.5 135 233 2 153300.0950 30 175 296 3
153300.0040 6.5 63 144 1 153300.0500 18.75 135 233 2 153300.0960 30.5 180 301 3
153300.0050 7 69 150 1 153300.0510 19 135 233 2 153300.0970 31 180 301 3
153300.0060 7.5 69 150 1 153300.0520 19.25 140 238 2 153300.0980 31.5 180 301 3
153300.0070 8 75 156 1 153300.0530 19.5 140 238 2 153300.0990 31.75 185 306 3
153300.0080 8.5 75 156 1 153300.0540 19.75 140 238 2 153300.1000 32 185 334 4
153300.0090 9 81 162 1 153300.0550 20 140 238 2 153300.1010 32.5 185 334 4
153300.0100 9.5 81 162 1 153300.0560 20.25 145 243 2 153300.1020 33 185 334 4
153300.0110 10 87 168 1 153300.0570 20.5 145 243 2 153300.1030 33.5 185 334 4
153300.0120 10.1 87 168 1 153300.0580 20.75 145 243 2 153300.1040 34 190 339 4
153300.0130 10.2 87 168 1 153300.0590 21 145 243 2 153300.1050 34.5 190 339 4
153300.0140 10.25 87 168 1 153300.0600 21.25 150 248 2 153300.1060 35 190 339 4
153300.0150 10.5 87 168 1 153300.0610 21.5 150 248 2 153300.1070 35.5 190 339 4
153300.0160 10.75 94 175 1 153300.0620 21.75 150 248 2 153300.1080 36 195 344 4
153300.0170 11 94 175 1 153300.0630 22 150 248 2 153300.1090 36.5 195 344 4
153300.0180 11.25 94 175 1 153300.0640 22.25 150 248 2 153300.1100 37 195 344 4
153300.0190 11.5 94 175 1 153300.0650 22.5 155 253 2 153300.1110 37.5 195 344 4
153300.0200 11.75 94 175 1 153300.0660 22.75 155 253 2 153300.1120 38 200 349 4
153300.0210 12 101 182 1 153300.0670 23 155 253 2 153300.1130 38.5 200 349 4
153300.0220 12.2 101 182 1 153300.0680 23.25 155 276 3 153300.1140 39 200 349 4
153300.0230 12.25 101 182 1 153300.0690 23.5 155 276 3 153300.1150 39.5 200 349 4
153300.0240 12.5 101 182 1 153300.0700 23.75 160 281 3 153300.1160 40 200 349 4
153300.0250 12.75 101 182 1 153300.0710 24 160 281 3 153300.1170 40.5 205 354 4
153300.0260 13 101 182 1 153300.0720 24.25 160 281 3 153300.1180 41 205 354 4
153300.0270 13.2 101 182 1 153300.0730 24.5 160 281 3 153300.1190 42 205 354 4
153300.0280 13.25 108 189 1 153300.0740 24.75 160 281 3 153300.1200 43 210 359 4
153300.0290 13.5 108 189 1 153300.0750 25 160 281 3 153300.1210 43.5 210 359 4
153300.0300 13.75 108 189 1 153300.0760 25.25 165 286 3 153300.1220 44 210 359 4
153300.0310 14 108 189 1 153300.0770 25.5 165 286 3 153300.1230 44.5 210 359 4
153300.0320 14.25 114 212 2 153300.0780 25.75 165 286 3 153300.1240 45 210 359 4
153300.0330 14.5 114 212 2 153300.0790 26 165 286 3 153300.1250 46 215 364 4
153300.0340 14.75 114 212 2 153300.0800 26.25 165 286 3 153300.1260 47 215 364 4
153300.0350 15 114 212 2 153300.0810 26.5 165 286 3 153300.1270 48 220 369 4
153300.0360 15.25 120 218 2 153300.0820 26.75 170 291 3 153300.1280 49 220 369 4
153300.0370 15.5 120 218 2 153300.0830 27 170 291 3 153300.1290 50 220 369 4
153300.0380 15.75 120 218 2 153300.0840 27.25 170 291 3 153300.1300 51 225 412 5
153300.0390 16 120 218 2 153300.0850 27.5 170 291 3 153300.1310 52 225 412 5
153300.0400 16.25 125 223 2 153300.0860 27.75 170 291 3 153300.1320 54 230 417 5
153300.0410 16.5 125 223 2 153300.0870 28 170 291 3 153300.1330 55 230 417 5
153300.0420 16.75 125 223 2 153300.0880 28.25 175 296 3 153300.1340 56 230 417 5
153300.0430 17 125 223 2 153300.0890 28.5 175 296 3 153300.1350 57 235 422 5
153300.0440 17.25 130 228 2 153300.0900 28.75 175 296 3 153300.1360 58 235 422 5
153300.0450 17.5 130 228 2 153300.0910 29 175 296 3 153300.1370 60 235 422 5
153300.0460 17.75 130 228 2 153300.0920 29.25 175 296 3

153310 Morse taper shank drill TITEX
HSS TiN DIN
α: 118º 345
P M K N

A4211 TiN, Typ N, HSS, damped surface, Morse taper, DIN 345.
Application
Standard drill for general purpose use in materials up to about 1000 N/mm2.
Order ID d l2 l1 MT Order ID d l2 l1 MT Order ID d l2 l1 MT
mm mm mm mm mm mm mm mm mm
153310.0100 10 87 168 1 153310.1100 14.5 114 212 2 153310.2100 19.5 140 238 2
153310.0200 10.2 87 168 1 153310.1200 15 114 212 2 153310.2200 20 140 238 2
153310.0300 10.5 87 168 1 153310.1300 15.5 120 218 2 153310.2300 21 145 243 2
153310.0400 11 94 175 1 153310.1400 16 120 218 2 153310.2400 22 150 248 2
153310.0500 11.5 94 175 1 153310.1500 16.5 125 223 2 153310.2500 23 155 253 2
153310.0600 12 101 182 1 153310.1600 17 125 223 2 153310.2600 24 160 281 3
153310.0700 12.5 101 182 1 153310.1700 17.5 130 228 2 153310.2700 25 160 281 3
153310.0800 13 101 182 1 153310.1800 18 130 228 2 153310.2800 26 165 286 3
153310.0900 13.5 108 189 1 153310.1900 18.5 135 233 2 153310.2900 28 170 291 3
153310.1000 14 108 189 1 153310.2000 19 135 233 2 153310.3000 30 175 296 3
Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 653
