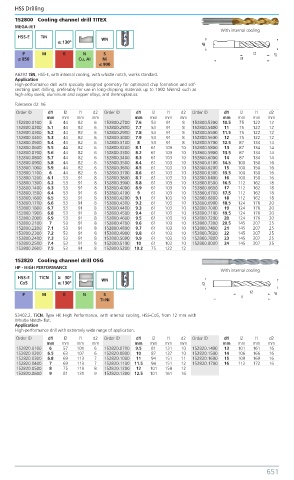

HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 52800 Cooling channel drill TITEX
MEGA-JET
With internal cooling
HSS-E TiN WN
α: 130º
P M K N S
≤ 850 Cu, AI Ni
≤ 900
A6292 TiN, HSS-E, with internal cooling, with whistle notch, works standard.
Application
High-performance drill with specially designed geometry for optimized chip formation and self-
centring spot drilling, preferably for use in long-chipping materials up to 1000 N/mm2 such as
high-alloy steels, aluminium and copper alloys, and thermoplastics.
Tolerance d2: h6
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
152800.0100 5 44 82 6 152800.2700 7.6 53 91 8 152800.5300 10.5 75 122 12
152800.0200 5.1 44 82 6 152800.2800 7.7 53 91 8 152800.5400 11 75 122 12
152800.0300 5.2 44 82 6 152800.2900 7.8 53 91 8 152800.5500 11.5 75 122 12
152800.0400 5.3 44 82 6 152800.3000 7.9 53 91 8 152800.5600 12 75 122 12
152800.0500 5.4 44 82 6 152800.3100 8 53 91 8 152800.5700 12.5 87 134 14
152800.0600 5.5 44 82 6 152800.3200 8.1 61 103 10 152800.5800 13 87 134 14
152800.0700 5.6 44 82 6 152800.3300 8.2 61 103 10 152800.5900 13.5 87 134 14
152800.0800 5.7 44 82 6 152800.3400 8.3 61 103 10 152800.6000 14 87 134 14
152800.0900 5.8 44 82 6 152800.3500 8.4 61 103 10 152800.6100 14.5 100 150 16
152800.1000 5.9 44 82 6 152800.3600 8.5 61 103 10 152800.6200 15 100 150 16
152800.1100 6 44 82 6 152800.3700 8.6 61 103 10 152800.6300 15.5 100 150 16
152800.1200 6.1 53 91 8 152800.3800 8.7 61 103 10 152800.6400 16 100 150 16
152800.1300 6.2 53 91 8 152800.3900 8.8 61 103 10 152800.6500 16.5 112 162 18
152800.1400 6.3 53 91 8 152800.4000 8.9 61 103 10 152800.6600 17 112 162 18
152800.1500 6.4 53 91 8 152800.4100 9 61 103 10 152800.6700 17.5 112 162 18
152800.1600 6.5 53 91 8 152800.4200 9.1 61 103 10 152800.6800 18 112 162 18
152800.1700 6.6 53 91 8 152800.4300 9.2 61 103 10 152800.6900 18.5 124 176 20
152800.1800 6.7 53 91 8 152800.4400 9.3 61 103 10 152800.7000 19 124 176 20
152800.1900 6.8 53 91 8 152800.4500 9.4 61 103 10 152800.7100 19.5 124 176 20
152800.2000 6.9 53 91 8 152800.4600 9.5 61 103 10 152800.7200 20 124 176 20
152800.2100 7 53 91 8 152800.4700 9.6 61 103 10 152800.7300 20.5 145 207 25
152800.2200 7.1 53 91 8 152800.4800 9.7 61 103 10 152800.7400 21 145 207 25
152800.2300 7.2 53 91 8 152800.4900 9.8 61 103 10 152800.7600 22 145 207 25
152800.2400 7.3 53 91 8 152800.5000 9.9 61 103 10 152800.7800 23 145 207 25
152800.2500 7.4 53 91 8 152800.5100 10 61 103 10 152800.8000 24 145 207 25
152800.2600 7.5 53 91 8 152800.5200 10.2 75 122 12

1 52820 Cooling channel drill OSG
HP - HIGH PERFORMANCE
With internal cooling
HSS-E TiCN λ: 30º WN
Co5 α: 130º

P M K N S
Ti-Ni

53402.2, TiCN, Type HP, High Performance, with internal cooling, HSS-Co5, from 12 mm with
Whistle Notch- flat.
Application
High-performance drill with extremely wide range of application.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
152820.0100 6 57 101 6 152820.0700 9.5 81 131 10 152820.1400 13 101 161 16
152820.0200 6.5 63 107 6 152820.0800 10 87 137 10 152820.1500 14 106 166 16
152820.0300 6.8 69 113 7 152820.1000 11 94 151 11 152820.1600 15 109 169 16
152820.0400 7 69 113 7 152820.1100 11.5 94 151 12 152820.1700 16 112 172 16
152820.0500 8 75 119 8 152820.1200 12 101 158 12
152820.0600 9 81 131 9 152820.1300 12.5 101 161 16

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 651
