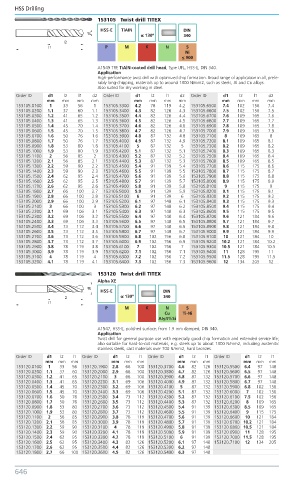

HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
153105 Twist drill TITEX

HSS-E TiAIN DIN
α: 130º 340
P M K N S
Ni
≤ 900
A1549 TFP, TiAlN-coated drill head, Type UFL, HSS-E, DIN 340.
Application
High-performance twist drill with optimized chip formation. Broad range of application in all, prefe-
rably long-chipping, materials up to around 1300 N/mm2, such as steels, Al and Cu alloys.
Also suited for dry working in steel.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
153105.0100 1 33 56 1 153105.3300 4.2 78 119 4.2 153105.6500 7.4 102 156 7.4
153105.0200 1.1 37 60 1.1 153105.3400 4.3 82 126 4.3 153105.6600 7.5 102 156 7.5
153105.0300 1.2 41 65 1.2 153105.3500 4.4 82 126 4.4 153105.6700 7.6 109 165 7.6
153105.0400 1.3 41 65 1.3 153105.3600 4.5 82 126 4.5 153105.6800 7.7 109 165 7.7
153105.0500 1.4 45 70 1.4 153105.3700 4.6 82 126 4.6 153105.6900 7.8 109 165 7.8
153105.0600 1.5 45 70 1.5 153105.3800 4.7 82 126 4.7 153105.7000 7.9 109 165 7.9
153105.0700 1.6 50 76 1.6 153105.3900 4.8 87 132 4.8 153105.7100 8 109 165 8
153105.0800 1.7 50 76 1.7 153105.4000 4.9 87 132 4.9 153105.7200 8.1 109 165 8.1
153105.0900 1.8 53 80 1.8 153105.4100 5 87 132 5 153105.7300 8.2 109 165 8.2
153105.1000 1.9 53 80 1.9 153105.4200 5.1 87 132 5.1 153105.7400 8.3 109 165 8.3
153105.1100 2 56 85 2 153105.4300 5.2 87 132 5.2 153105.7500 8.4 109 165 8.4
153105.1200 2.1 56 85 2.1 153105.4400 5.3 87 132 5.3 153105.7600 8.5 109 165 8.5
153105.1300 2.2 59 90 2.2 153105.4500 5.4 91 139 5.4 153105.7700 8.6 115 175 8.6
153105.1400 2.3 59 90 2.3 153105.4600 5.5 91 139 5.5 153105.7800 8.7 115 175 8.7
153105.1500 2.4 62 95 2.4 153105.4700 5.6 91 139 5.6 153105.7900 8.8 115 175 8.8
153105.1600 2.5 62 95 2.5 153105.4800 5.7 91 139 5.7 153105.8000 8.9 115 175 8.9
153105.1700 2.6 62 95 2.6 153105.4900 5.8 91 139 5.8 153105.8100 9 115 175 9
153105.1800 2.7 66 100 2.7 153105.5000 5.9 91 139 5.9 153105.8200 9.1 115 175 9.1
153105.1900 2.8 66 100 2.8 153105.5100 6 91 139 6 153105.8300 9.2 115 175 9.2
153105.2000 2.9 66 100 2.9 153105.5200 6.1 97 148 6.1 153105.8400 9.3 115 175 9.3
153105.2100 3 66 100 3 153105.5300 6.2 97 148 6.2 153105.8500 9.4 115 175 9.4
153105.2200 3.1 69 106 3.1 153105.5400 6.3 97 148 6.3 153105.8600 9.5 115 175 9.5
153105.2300 3.2 69 106 3.2 153105.5500 6.4 97 148 6.4 153105.8700 9.6 121 184 9.6
153105.2400 3.3 69 106 3.3 153105.5600 6.5 97 148 6.5 153105.8800 9.7 121 184 9.7
153105.2500 3.4 73 112 3.4 153105.5700 6.6 97 148 6.6 153105.8900 9.8 121 184 9.8
153105.2600 3.5 73 112 3.5 153105.5800 6.7 97 148 6.7 153105.9000 9.9 121 184 9.9
153105.2700 3.6 73 112 3.6 153105.5900 6.8 102 156 6.8 153105.9100 10 121 184 10
153105.2800 3.7 73 112 3.7 153105.6000 6.9 102 156 6.9 153105.9200 10.2 121 184 10.2
153105.2900 3.8 78 119 3.8 153105.6100 7 102 156 7 153105.9300 10.5 121 184 10.5
153105.3000 3.9 78 119 3.9 153105.6200 7.1 102 156 7.1 153105.9400 11 128 195 11
153105.3100 4 78 119 4 153105.6300 7.2 102 156 7.2 153105.9500 11.5 128 195 11.5
153105.3200 4.1 78 119 4.1 153105.6400 7.3 102 156 7.3 153105.9600 12 134 205 12
153120 Twist drill TITEX
Alpha XE
HSS-E DIN
α: 130º 340
P M K N S
Cu Ti-Ni
AI≤4%Si

A1547, HSS-E, polished surface; from 1.9 mm damped; DIN 340.
Application
Twist drill for general purpose use with especially good chip formation and extended service life;
also suitable for hard-to-cut materials, e.g. steels up to about 1300 N/mm2, including austenitic
stainless steels, cast materials over 700 N/mm2, hard bronzes.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
153120.0100 1 33 56 153120.1900 2.8 66 100 153120.3700 4.6 82 126 153120.5500 6.4 97 148
153120.0200 1.1 37 60 153120.2000 2.9 66 100 153120.3800 4.7 82 126 153120.5600 6.5 97 148
153120.0300 1.2 41 65 153120.2100 3 66 100 153120.3900 4.8 87 132 153120.5700 6.6 97 148
153120.0400 1.3 41 65 153120.2200 3.1 69 106 153120.4000 4.9 87 132 153120.5800 6.7 97 148
153120.0500 1.4 45 70 153120.2300 3.2 69 106 153120.4100 5 87 132 153120.5900 6.8 102 156
153120.0600 1.5 45 70 153120.2400 3.3 69 106 153120.4200 5.1 87 132 153120.6000 7 102 156
153120.0700 1.6 50 76 153120.2500 3.4 73 112 153120.4300 5.2 87 132 153120.6100 7.5 102 156
153120.0800 1.7 50 76 153120.2600 3.5 73 112 153120.4400 5.3 87 132 153120.6200 8 109 165
153120.0900 1.8 53 80 153120.2700 3.6 73 112 153120.4500 5.4 91 139 153120.6300 8.5 109 165
153120.1000 1.9 53 80 153120.2800 3.7 73 112 153120.4600 5.5 91 139 153120.6400 9 115 175
153120.1100 2 56 85 153120.2900 3.8 78 119 153120.4700 5.6 91 139 153120.6600 10 121 184
153120.1200 2.1 56 85 153120.3000 3.9 78 119 153120.4800 5.7 91 139 153120.6700 10.2 121 184
153120.1300 2.2 59 90 153120.3100 4 78 119 153120.4900 5.8 91 139 153120.6800 10.5 121 184
153120.1400 2.3 59 90 153120.3200 4.1 78 119 153120.5000 5.9 91 139 153120.6900 11 128 195
153120.1500 2.4 62 95 153120.3300 4.2 78 119 153120.5100 6 91 139 153120.7000 11.5 128 195
153120.1600 2.5 62 95 153120.3400 4.3 82 126 153120.5200 6.1 97 148 153120.7100 12 134 205
153120.1700 2.6 62 95 153120.3500 4.4 82 126 153120.5300 6.2 97 148
153120.1800 2.7 66 100 153120.3600 4.5 82 126 153120.5400 6.3 97 148
