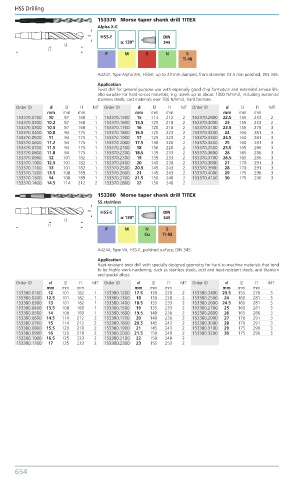

HSS Drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
153370 Morse taper shank drill TITEX
Alpha X-E
HSS-E DIN
α: 130º 345
P M K N S
Ti-Ni

A4247, Type Alpha X-E, HSS-E, up to 23 mm damped, from diameter 23.5 mm polished, DIN 345.
Application
Twist drill for general purpose use with especially good chip formation and extended service life;
also suitable for hard-to-cut materials, e.g. steels up to about 1300 N/mm2, including austenitic
stainless steels, cast materials over 700 N/mm2, hard bronzes.
Order ID d l2 l1 MT Order ID d l2 l1 MT Order ID d l2 l1 MT
mm mm mm mm mm mm mm mm mm
153370.0100 10 87 168 1 153370.1500 15 114 212 2 153370.2900 22.5 155 253 2
153370.0200 10.2 87 168 1 153370.1600 15.5 120 218 2 153370.3000 23 155 253 2
153370.0300 10.5 87 168 1 153370.1700 16 120 218 2 153370.3100 23.5 155 276 3
153370.0400 10.8 94 175 1 153370.1800 16.5 125 223 2 153370.3200 24 160 281 3
153370.0500 11 94 175 1 153370.1900 17 125 223 2 153370.3300 24.5 160 281 3
153370.0600 11.2 94 175 1 153370.2000 17.5 130 228 2 153370.3400 25 160 281 3
153370.0700 11.5 94 175 1 153370.2100 18 130 228 2 153370.3500 25.5 165 286 3
153370.0800 11.8 94 175 1 153370.2200 18.5 135 233 2 153370.3600 26 165 286 3
153370.0900 12 101 182 1 153370.2300 19 135 233 2 153370.3700 26.5 165 286 3
153370.1000 12.5 101 182 1 153370.2400 20 140 238 2 153370.3800 27 170 291 3
153370.1100 13 101 182 1 153370.2500 20.5 145 243 2 153370.3900 28 170 291 3
153370.1200 13.5 108 189 1 153370.2600 21 145 243 2 153370.4000 29 175 296 3
153370.1300 14 108 189 1 153370.2700 21.5 150 248 2 153370.4100 30 175 296 3
153370.1400 14.5 114 212 2 153370.2800 22 150 248 2
153380 Morse taper shank drill TITEX
SS stainless
HSS-E DIN
α: 130º 345

P M N S
Cu Ti-Ni

A4244, Type VA, HSS-E, polished surface; DIN 345.
Application
Heat-resistant twist drill with specially designed geometry for hard-to-machine materials that tend
to be highly work-hardening, such as stainless steels, acid and heat-resistant steels, and titanium
and special alloys.
Order ID d l2 l1 MT Order ID d l2 l1 MT Order ID d l2 l1 MT
mm mm mm mm mm mm mm mm mm
153380.0100 12 101 182 1 153380.1200 17.5 130 228 2 153380.2400 23.5 155 276 3
153380.0200 12.5 101 182 1 153380.1300 18 130 228 2 153380.2500 24 160 281 3
153380.0300 13 101 182 1 153380.1400 18.5 135 233 2 153380.2600 24.5 160 281 3
153380.0400 13.5 108 189 1 153380.1500 19 135 233 2 153380.2700 25 160 281 3
153380.0500 14 108 189 1 153380.1600 19.5 140 238 2 153380.2800 26 165 286 3
153380.0600 14.5 114 212 2 153380.1700 20 140 238 2 153380.2900 27 170 291 3
153380.0700 15 114 212 2 153380.1800 20.5 145 243 2 153380.3000 28 170 291 3
153380.0800 15.5 120 218 2 153380.1900 21 145 243 2 153380.3100 29 175 296 3
153380.0900 16 120 218 2 153380.2000 21.5 150 248 2 153380.3200 30 175 296 3
153380.1000 16.5 125 223 2 153380.2100 22 150 248 2
153380.1100 17 125 223 2 153380.2300 23 155 253 2

654 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
