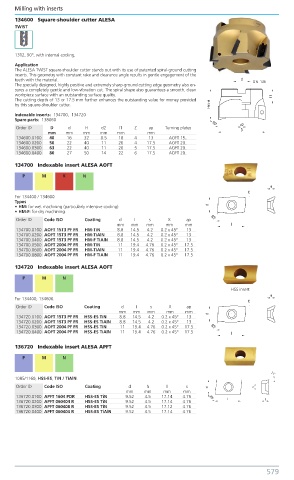

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
134600 Square-shoulder cutter ALESA
TWIST

1312, 90°, with internal cooling.
Application
The ALESA TWIST square-shoulder cutter stands out with its use of patented spiral-ground cutting
inserts. This geometry with constant rake and clearance angle results in gentle engagement of the
teeth with the material.
The specially designed, highly positive and extremely sharp-ground cutting edge geometry also en-
sures a completely gentle and low-vibration cut. The spiral shape also guarantees a smooth, clean
workpiece surface with an outstanding surface quality.
The cutting depth of 13 or 17.5 mm further enhances the outstanding value for money provided
by this square-shoulder cutter.
Indexable inserts: 134700, 134720
Spare parts: 138060
Order ID D d H d2 l1 Z ap Turning plates
mm mm mm mm mm mm
134600.0100 40 16 32 8.5 18 4 13 AOFT 15..
134600.0200 50 22 40 11 20 4 17.5 AOFT 20..
134600.0300 63 22 40 11 20 5 17.5 AOFT 20..
134600.0400 80 27 50 14 22 6 17.5 AOFT 20..
134700 Indexable insert ALESA AOFT

P M K N

For 134400 / 134600
Types
• HM: for wet machining (particularly intensive cooling).
• HM-F: for dry machining.
Order ID Code ISO Coating d I s X ap
mm mm mm mm mm
134700.0100 AOFT 15T3 PF FR HM-TiN 8.8 14.5 4.2 0.2 x 45° 13
134700.0200 AOFT 15T3 PF FR HM-TiAlN 8.8 14.5 4.2 0.2 x 45° 13
134700.0400 AOFT 15T3 PF FR HM-F TiAlN 8.8 14.5 4.2 0.2 x 45° 13
134700.0500 AOFT 2004 PF FR HM-TiN 11 19.4 4.76 0.2 x 45° 17.5
134700.0600 AOFT 2004 PF FR HM-TiAlN 11 19.4 4.76 0.2 x 45° 17.5
134700.0800 AOFT 2004 PF FR HM-F TiAlN 11 19.4 4.76 0.2 x 45° 17.5
134720 Indexable insert ALESA AOFT
P M N

HSS insert
For 134400, 134600.
Order ID Code ISO Coating d I s X ap
mm mm mm mm mm
134720.0100 AOFT 15T3 PF FR HSS-ES TiN 8.8 14.5 4.2 0.2 x 45° 13
134720.0200 AOFT 15T3 PF FR HSS-ES TiAlN 8.8 14.5 4.2 0.2 x 45° 13
134720.0300 AOFT 2004 PF FR HSS-ES TiN 11 19.4 4.76 0.2 x 45° 17.5
134720.0400 AOFT 2004 PF FR HSS-ES TiAlN 11 19.4 4.76 0.2 x 45° 17.5

136720 Indexable insert ALESA APFT
P M N

1085/1160, HSS-ES, TiN / TiAlN.
Order ID Code ISO Coating d h I s
mm mm mm mm
136720.0100 APFT 1604 PDR HSS-ES TiN 9.52 4.5 17.14 4.76
136720.0200 APFT 060404 R HSS-ES TiN 9.52 4.5 17.14 4.76
136720.0300 APFT 060408 R HSS-ES TiN 9.52 4.5 17.12 4.76
136720.0400 APFT 060404 R HSS-ES TiAlN 9.52 4.5 17.14 4.76
