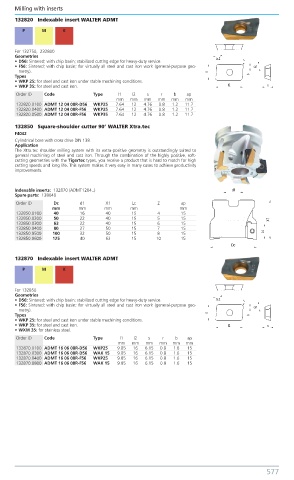

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 32820 Indexable insert WALTER ADMT

P M K

For 132750, 232800
Geometries
• D56: Sintered; with chip basin; stabilized cutting edge for heavy-duty service.
• F56: Sintered; with chip basin; for virtually all steel and cast iron work (general-purpose geo-
metry).
Types
• WKP 25: for steel and cast iron under stable machining conditions.
• WKP 35: for steel and cast iron.
Order ID Code Type l1 l2 s r b ap
mm mm mm mm mm mm
132820.0100 ADMT 12 04 08R-D56 WKP25 7.64 12 4.76 0.8 1.2 11.7
132820.0400 ADMT 12 04 08R-F56 WKP25 7.64 12 4.76 0.8 1.2 11.7
132820.0500 ADMT 12 04 08R-F56 WKP35 7.64 12 4.76 0.8 1.2 11.7

1 32850 Square-shoulder cutter 90° WALTER Xtra.tec
F4042
Cylindrical bore with cross drive DIN 138.
Application
The Xtra.tec shoulder milling system with its extra-positive geometry is outstandingly suited to
general machining of steel and cast iron. Through the combination of the highly positive, soft-
cutting geometries with the Tigertec types, you receive a product that is hard to match for high
cutting speeds and long life. This system makes it very easy in many cases to achieve productivity
improvements.

Indexable inserts: 132870 (ADMT1204..)
Spare parts: 138040
Order ID Dc d1 X1 Lc Z ap
mm mm mm mm mm
132850.0100 40 16 40 15 4 15
132850.0200 50 22 40 15 5 15
132850.0300 63 22 40 15 6 15
132850.0400 80 27 50 15 7 15
132850.0500 100 32 50 15 8 15
132850.0600 125 40 63 15 10 15

1 32870 Indexable insert WALTER ADMT

P M K

For 132850
Geometries
• D56: Sintered; with chip basin; stabilized cutting edge for heavy-duty service.
• F56: Sintered; with chip basin; for virtually all steel and cast iron work (general-purpose geo-
metry).
Types
• WKP 25: for steel and cast iron under stable machining conditions.
• WKP 35: for steel and cast iron.
• WXM 35: for stainless steel.
Order ID Code Type l1 l2 s r b ap
mm mm mm mm mm mm
132870.0100 ADMT 16 06 08R-D56 WKP25 9.85 16 6.15 0.8 1.6 15
132870.0300 ADMT 16 06 08R-D56 WAK 15 9.85 16 6.15 0.8 1.6 15
132870.0400 ADMT 16 06 08R-F56 WKP25 9.85 16 6.15 0.8 1.6 15
132870.0800 ADMT 16 06 08R-F56 WAK 15 9.85 16 6.15 0.8 1.6 15
