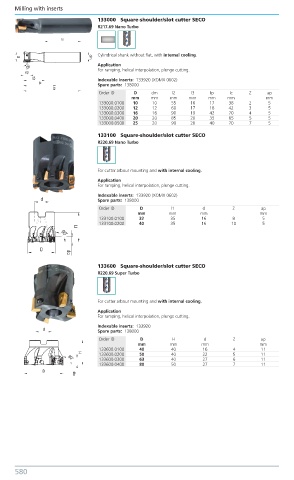

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
133000 Square-shoulder/slot cutter SECO
R217.69 Nano Turbo

Cylindrical shank without flat, with internal cooling.
Application
For ramping, helical interpolation, plunge cutting.
Indexable inserts: 133920 (XOMX 0602)
Spare parts: 138000
Order ID D dm l2 l3 Ip lc Z ap
mm mm mm mm mm mm mm
133000.0100 10 10 55 16 17 38 2 5
133000.0200 12 12 60 17 18 42 3 5
133000.0300 16 16 90 19 42 70 4 5
133000.0400 20 20 85 20 35 65 5 5
133000.0500 25 20 90 20 40 70 7 5
133100 Square-shoulder/slot cutter SECO
R220.69 Nano Turbo

For cutter arbour mounting and with internal cooling.
Application
For ramping, helical interpolation, plunge cutting.
Indexable inserts: 133920 (XOMX 0602)
Spare parts: 138000
Order ID D l1 d Z ap
mm mm mm mm
133100.0100 32 35 16 8 5
133100.0200 40 35 16 10 5

133600 Square-shoulder/slot cutter SECO
R220.69 Super Turbo

For cutter arbour mounting and with internal cooling.
Application
For ramping, helical interpolation, plunge cutting.
Indexable inserts: 133920
Spare parts: 138000
Order ID D H d Z ap
mm mm mm mm
133600.0100 40 40 16 4 11
133600.0200 50 40 22 5 11
133600.0300 63 40 27 6 11
133600.0400 80 50 27 7 11
