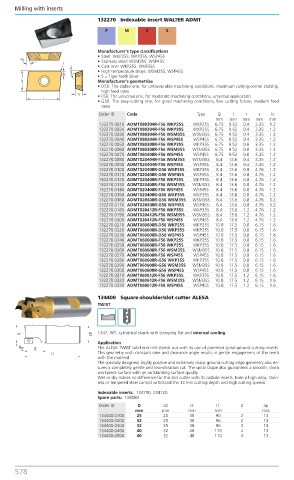

1 32270 Indexable insert WALTER ADMT

P M K S

Manufacturer‘s type classifications
• Steel: WKP25S, WKP35S, WSP45S
α 2
r • Stainless steel: WSM35S, WSP45S
• Cast iron: WKP25S, WKP35S
b α • High temperature alloys: WSM35S, WSP45S
• S = Tiger·tec® Silver
l 2 Manufacturer‘s geometries
• D56: The stable one, for unfavourable machining conditions, maximum cutting-corner stability,
high feed rates
s
l • F56: The universal one, for moderate machining conditions, universal application
• G56: The easy-cutting one, for good machining conditions, low cutting forces, medium feed
rates
Order ID Code Type l2 l r s b
mm mm mm mm mm
132270.0010 ADMT080304R-F56 WKP25S WKP25S 6.75 9.52 0.4 3.35 1.2
132270.0020 ADMT080304R-F56 WKP35S WKP35S 6.75 9.52 0.4 3.35 1.2
132270.0030 ADMT080304R-F56 WSM35S WSM35S 6.75 9.52 0.4 3.35 1.2
132270.0040 ADMT080304R-F56 WSP45S WSP45S 6.75 9.52 0.4 3.35 1.2
132270.0050 ADMT080308R-F56 WKP35S WKP35S 6.75 9.52 0.8 3.35 1.2
132270.0060 ADMT080308R-F56 WSM35S WSM35S 6.75 9.52 0.8 3.35 1.2
132270.0070 ADMT080308R-F56 WSP45S WSP45S 6.75 9.52 0.8 3.35 1.2
132270.0080 ADMT020404R-F56 WSM35S WSM35S 8.4 13.6 0.4 3.35 1.2
132270.0090 ADMT020404R-F56 WSP45S WSP45S 8.4 13.6 0.4 3.35 1.2
132270.0100 ADMT020408R-D56 WKP35S WKP35S 8.4 13.6 0.8 4.76 1.2
132270.0110 ADMT020408R-D56 WSP45S WSP45S 8.4 13.6 0.8 4.76 1.2
132270.0120 ADMT020408R-F56 WKP35S WKP35S 8.4 13.6 0.8 4.76 1.2
132270.0130 ADMT020408R-F56 WSM35S WSM35S 8.4 13.6 0.8 4.76 1.2
132270.0140 ADMT020408R-F56 WSP45S WSP45S 8.4 13.6 0.8 4.76 1.2
132270.0150 ADMT020408R-G56 WKP35S WKP35S 8.4 13.6 0.8 4.76 1.2
132270.0160 ADMT020408R-G56 WSM35S WSM35S 8.4 13.6 0.8 4.76 1.2
132270.0170 ADMT020408R-G56 WSP45S WSP45S 8.4 13.6 0.8 4.76 1.2
132270.0180 ADMT020412R-F56 WKP35S WKP35S 8.4 13.6 1.2 4.76 1.2
132270.0190 ADMT020412R-F56 WSM35S WSM35S 8.4 13.6 1.2 4.76 1.2
132270.0200 ADMT020412R-F56 WSP45S WSP45S 8.4 13.6 1.2 4.76 1.2
132270.0210 ADMT060608R-D56 WKP25S WKP25S 10.8 17.5 0.8 6.15 1.6
132270.0220 ADMT060608R-D56 WKP35S WKP35S 10.8 17.5 0.8 6.15 1.6
132270.0230 ADMT060608R-D56 WSP45S WSP45S 10.8 17.5 0.8 6.15 1.6
132270.0240 ADMT060608R-F56 WKP25S WKP25S 10.8 17.5 0.8 6.15 1.6
132270.0250 ADMT060608R-F56 WKP35S WKP35S 10.8 17.5 0.8 6.15 1.6
132270.0260 ADMT060608R-F56 WSM35S WSM35S 10.8 17.5 0.8 6.15 1.6
132270.0270 ADMT060608R-F56 WSP45S WSP45S 10.8 17.5 0.8 6.15 1.6
132270.0280 ADMT060608R-G56 WKP35S WKP35S 10.8 17.5 0.8 6.15 1.6
132270.0290 ADMT060608R-G56 WSM35S WSM35S 10.8 17.5 0.8 6.15 1.6
132270.0300 ADMT060608R-G56 WSP45S WSP45S 10.8 17.5 0.8 6.15 1.6
132270.0310 ADMT060612R-F56 WKP35S WKP35S 10.8 17.5 1.2 6.15 1.6
132270.0320 ADMT060612R-F56 WSM35S WSM35S 10.8 17.5 1.2 6.15 1.6
132270.0330 ADMT060612R-F56 WSP45S WSP45S 10.8 17.5 1.2 6.15 1.6
1 34400 Square-shoulder/slot cutter ALESA
TWIST

1347, 90°, cylindrical shank with clamping flat and internal cooling.
Application
The ALESA TWIST solid end mill stands out with its use of patented spiral-ground cutting inserts.
This geometry with constant rake and clearance angle results in gentle engagement of the teeth
with the material.
The specially designed, highly positive and extremely sharp-ground cutting edge geometry also en-
sures a completely gentle and low-vibration cut. The spiral shape also guarantees a smooth, clean
workpiece surface with an outstanding surface quality.
Wet or dry makes no difference for this slot cutter with its carbide inserts. Even a high-alloy, stain-
less or tempered steel cannot withstand the 13 mm cutting depth and high cutting speeds.
Indexable inserts: 134700, 234720
Spare parts: 138060
Order ID D d2 l2 l1 Z ap
mm mm mm mm mm
134400.0100 25 20 38 90 2 13
134400.0200 32 25 38 96 2 13
134400.0300 32 25 38 96 3 13
134400.0400 40 32 48 110 2 13
134400.0500 40 32 48 110 4 13
