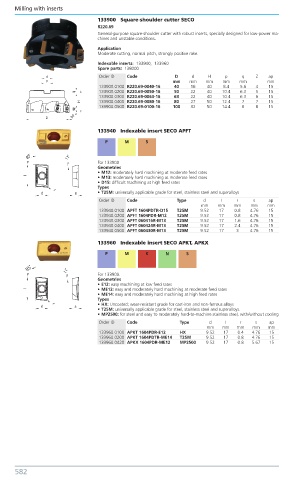

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
133900 Square-shoulder cutter SECO
R220.69
General-purpose square-shoulder cutter with robust inserts, specially designed for low-power ma-
chines and unstable conditions.
Application
Moderate cutting, normal pitch, strongly positive rake.
Indexable inserts: 133940, 133960
Spare parts: 138000
Order ID Code D d H p q Z ap
mm mm mm mm mm mm
133900.0100 R220.69-0040-16 40 16 40 8.4 5.6 4 15
133900.0200 R220.69-0050-16 50 22 40 10.4 6.3 5 15
133900.0300 R220.69-0063-16 63 22 40 10.4 6.3 6 15
133900.0400 R220.69-0080-16 80 27 50 12.4 7 7 15
133900.0500 R220.69-0100-16 100 32 50 14.4 8 8 15

133940 Indexable insert SECO APFT
P M S

For 133900
Geometries
• M12: moderately hard machining at moderate feed rates
• M13: moderately hard machining at moderate feed rates
• D15: difficult machining at high feed rates
Types
• T25M: universally applicable grade for steel, stainless steel and superalloys
Order ID Code Type d I r s ap
mm mm mm mm mm
133940.0100 APFT 1604PDTR-D15 T25M 9.52 17 0.8 4.76 15
133940.0200 APFT 1604PDR-M12 T25M 9.52 17 0.8 4.76 15
133940.0300 APFT 060416R-M13 T25M 9.52 17 1.6 4.76 15
133940.0400 APFT 060424R-M13 T25M 9.52 17 2.4 4.76 15
133940.0500 APFT 060430R-M13 T25M 9.52 17 3 4.76 15
133960 Indexable insert SECO APKT, APKX
P M K N S

For 133900.
Geometries
• E12: easy machining at low feed rates
• ME12: easy and moderately hard machining at moderate feed rates
• ME14: easy and moderately hard machining at high feed rates
Types
• HX: Uncoated; wear-resistant grade for cast-iron and non-ferrous alloys
• T25M: universally applicable grade for steel, stainless steel and superalloys.
• MP2500: for steel and easy to moderately hard-to-machine stainless steel, with/without cooling
Order ID Code Type d I r s ap
mm mm mm mm mm
133960.0100 APKT 1604PDR-E12 HX 9.52 17 0.4 4.76 15
133960.0200 APKT 1604PDTR-ME14 T25M 9.52 17 0.8 4.76 15
133960.0420 APKX 1604PDR-ME12 MP2500 9.52 17 0.8 5.67 15
