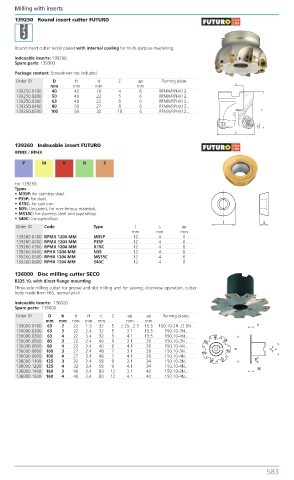

Page 592 - Benma | Blue book 5.0

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
139250 Round insert cutter FUTURO

Round insert cutter nickel plated with internal cooling for multi-purpose machining.
Indexable inserts: 139260
Spare parts: 139300
Package content: Screwdriver not included.
Order ID D H d Z ap Turning plate
mm mm mm mm
139250.0100 40 40 16 4 6 RPMX/RPHX12..
139250.0200 50 40 22 5 6 RPMX/RPHX12..
139250.0300 63 40 22 6 6 RPMX/RPHX12..
139250.0400 80 50 27 8 6 RPMX/RPHX12..
139250.0500 100 50 32 10 6 RPMX/RPHX12..

139260 Indexable insert FUTURO
RPMX / RPHX
P M K N S

For 139250.
Types
• M35P: for stainless steel.
• P35P: for steel.
• K15C: for cast iron.
• N35: Uncoated, for non-ferrous materials.
• MS35C: for stainless steel and superalloys.
• S40C: for superalloys.
Order ID Code Type l s ap
mm mm mm
139260.0100 RPMX 1204 MM M35P 12 4 6
139260.0200 RPMX 1204 MM P35P 12 4 6
139260.0300 RPMX 1204 MM K15C 12 4 6
139260.0400 RPHX 1204 MM N35 12 4 6
139260.0500 RPHX 1204 MM MS35C 12 4 6
139260.0600 RPHX 1204 MM S40C 12 4 6
136000 Disc milling cutter SECO
R335.10, with direct flange mounting
Three-side milling cutter for groove and slot milling and for sawing, clockwise operation, cutter
body made from HSS, normal pitch.
Indexable inserts: 136020
Spare parts: 138000
Order ID D b d H c Z ap ae Turning plates
mm mm mm mm mm mm mm
136000.0100 63 2 22 1.9 32 5 2.25...2.5 15.5 150.10-2N../2.5N..
136000.0200 63 3 22 2.4 32 5 3.1 15.5 150.10-3N..
136000.0300 63 4 22 3.4 32 5 4.1 15.5 150.10-4N..
136000.0500 80 3 22 2.4 40 6 3.1 20 150.10-3N..
136000.0600 80 4 22 3.4 40 6 4.1 20 150.10-4N..
136000.0800 100 3 27 2.4 48 7 3.1 29 150.10-3N..
136000.0900 100 4 27 3.4 48 7 4.1 29 150.10-4N..
136000.1100 125 3 32 2.4 58 9 3.1 34 150.10-3N..
136000.1200 125 4 32 3.4 58 9 4.1 34 150.10-4N..
136000.1400 160 3 40 2.4 80 12 3.1 40 150.10-3N..
136000.1500 160 4 40 3.4 80 12 4.1 40 150.10-4N..

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 583
