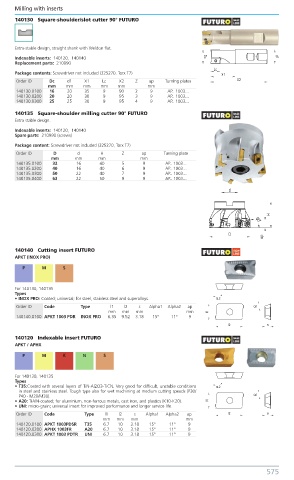

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
140130 Square-shoulder/slot cutter 90° FUTURO

Extra-stable design, straight shank with Weldon flat.
Indexable inserts: 140120, 140140
Replacement parts: 210990
Package contents: Screwdriver not included (325270, Torx T7)
Order ID Dc d1 X1 Lc X2 Z ap Turning plates
mm mm mm mm mm mm
140130.0100 16 20 35 9 90 2 9 AP.. 1003...
140130.0200 20 20 30 9 95 3 9 AP.. 1003...
140130.0300 25 25 30 9 95 4 9 AP.. 1003...
140135 Square-shoulder milling cutter 90° FUTURO
Extra stable design.
Indexable inserts: 140120, 140140
Spare parts: 210990 (screws)
Package content: Screwdriver not included (325270, Torx T7)
Order ID D d H Z ap Turning plate
mm mm mm mm
140135.0100 32 16 40 5 9 AP.. 1003...
140135.0200 40 16 40 6 9 AP.. 1003...
140135.0300 50 22 40 7 9 AP.. 1003...
140135.0400 63 22 50 9 9 AP.. 1003...

140140 Cutting insert FUTURO
APKT (INOX PRO)
P M S

For 140130, 140135
Types
• INOX PRO: Coated; universal; for steel, stainless steel and superalloys.
Order ID Code Type l1 l2 s Alpha1 Alpha2 ap
mm mm mm mm
140140.0100 APKT 1003 PDR INOX PRO 6.35 9.52 3.18 15° 11° 9

140120 Indexable insert FUTURO
APKT / APHX
P M K N S

For 140130, 140135
Types
• T35:Coated with several layers of TiN-Al2O3-TiCN. Very good for difficult, unstable conditions
in steel and stainless steel. Tough type also for wet machining at medium cutting speeds (P30/
P40 - M20/M30).
• A20: TiAlN-coated; for aluminium, non-ferrous metals, cast iron, and plastics (K10-K20).
• UNI: micro-grain; universal insert for improved performance and longer service life.
Order ID Code Type l1 l2 s Alpha1 Alpha2 ap
mm mm mm mm
140120.0100 APKT 1003PDSR T35 6.7 10 3.18 15° 11° 9
140120.0200 APHX 1003FR A20 6.7 10 3.18 15° 11° 9
140120.0300 APKT 1003 PDTR UNI 6.7 10 3.18 15° 11° 9
