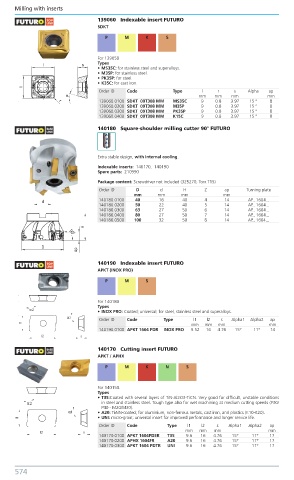

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
139060 Indexable insert FUTURO
SDKT
P M K S

For 139050
Types
• MS35C: for stainless steel and superalloys.
• M35P: for stainless steel.
• PK35P: for steel.
• K35C: for cast iron.
Order ID Code Type l r s Alpha ap
mm mm mm mm
139060.0100 SDKT 09T308 MM MS35C 9 0.8 3.97 15 ° 8
139060.0200 SDKT 09T308 MM M35P 9 0.8 3.97 15 ° 8
139060.0300 SDKT 09T308 MM PK35P 9 0.8 3.97 15 ° 8
139060.0400 SDKT 09T308 MM K15C 9 0.8 3.97 15 ° 8
140180 Square-shoulder milling cutter 90° FUTURO

Extra stable design, with internal cooling.
Indexable inserts: 140170, 140190
Spare parts: 210990
Package content: Screwdriver not included (325270, Torx T15)
Order ID D d H Z ap Turning plate
mm mm mm mm
140180.0100 40 16 40 4 14 AP.. 1604...
140180.0200 50 22 40 5 14 AP.. 1604...
140180.0300 63 27 50 6 14 AP.. 1604...
140180.0400 80 27 50 7 14 AP.. 1604...
140180.0500 100 32 50 8 14 AP.. 1604...

140190 Indexable insert FUTURO
APKT (INOX PRO)
P M S

For 140180
Types
• INOX PRO: Coated; universal; for steel, stainless steel and superalloys.
Order ID Code Type l1 l2 s Alpha1 Alpha2 ap
mm mm mm mm
140190.0100 APKT 1604 PDR INOX PRO 9.52 16 4.76 15° 11° 14

140170 Cutting insert FUTURO
APKT / APHX
P M K N S

For 140150.
Types
• T35:Coated with several layers of TiN-Al2O3-TiCN. Very good for difficult, unstable conditions
in steel and stainless steel. Tough type also for wet machining at medium cutting speeds (P30/
P40 - M20/M30).
• A20: TiAlN-coated; for aluminium, non-ferrous metals, cast iron, and plastics (K10-K20).
• UNI: micro-grain; universal insert for improved performance and longer service life.
Order ID Code Type l1 l2 s Alpha1 Alpha2 ap
mm mm mm mm
140170.0100 APKT 1604PDER T35 9.6 16 4.76 15° 11° 17
140170.0200 APHX 1604FR A20 9.6 16 4.76 15° 11° 17
140170.0300 APKT 1604 PDTR UNI 9.6 16 4.76 15° 11° 17
