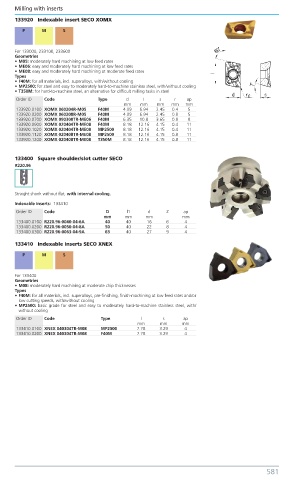

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
133920 Indexable insert SECO XOMX

P M S

For 133000, 233100, 233600
Geometries
• M05: moderately hard machining at low feed rates
• ME06: easy and moderately hard machining at low feed rates
• ME08: easy and moderately hard machining at moderate feed rates
Types
• F40M: for all materials, incl. superalloys, with/without cooling
• MP2500: for steel and easy to moderately hard-to-machine stainless steel, with/without cooling
• T350M: for hard-to-machine steel, an alternative for difficult milling tasks in steel
Order ID Code Type d I s r ap
mm mm mm mm mm
133920.0100 XOMX 060204R-M05 F40M 4.09 6.94 2.45 0.4 5
133920.0200 XOMX 060208R-M05 F40M 4.09 6.94 2.45 0.8 5
133920.0700 XOMX 090308TR-ME06 F40M 6.35 10.8 3.65 0.8 8
133920.0900 XOMX 020404TR-ME08 F40M 8.18 12.16 4.15 0.4 11
133920.1020 XOMX 020404TR-ME08 MP2500 8.18 12.16 4.15 0.4 11
133920.1120 XOMX 020408TR-ME08 MP2500 8.18 12.16 4.15 0.8 11
133920.1200 XOMX 020408TR-ME08 T350M 8.18 12.16 4.15 0.8 11

133400 Square shoulder/slot cutter SECO
R220.96

Straight shank without flat, with internal cooling.
Indexable inserts: 133410
Order ID Code D l1 d Z ap
mm mm mm mm
133400.0100 R220.96-0040-04-6A 40 40 16 6 4
133400.0200 R220.96-0050-04-8A 50 40 22 8 4
133400.0300 R220.96-0063-04-9A 63 40 27 9 4
133410 Indexable inserts SECO XNEX

P M S

For 133400
Geometries
• M08: moderately hard machining at moderate chip thicknesses
Types
• F40M: for all materials, incl. superalloys, pre-finishing, finish-machining at low feed rates and/or
low cutting speeds, with/without cooling
• MP2500: basic grade for steel and easy to moderately hard-to-machine stainless steel, with/
without cooling
Order ID Code Type l s ap
mm mm mm
133410.0100 XNEX 040304TR-M08 MP2500 7.78 3.29 4
133410.0200 XNEX 040304TR-M08 F40M 7.78 3.29 4
