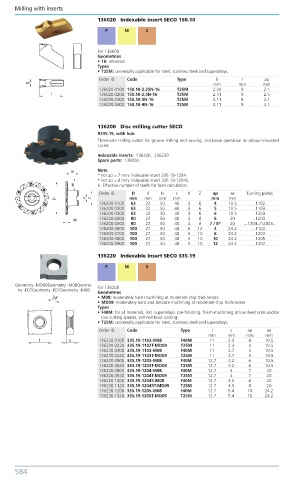

Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
136020 Indexable insert SECO 150.10

P M S

For 136000
Geometries
• 16: universal
Types
• T25M: universally applicable for steel, stainless steel and superalloys.
Order ID Code Type B I ap
mm mm mm
136020.0100 150.10-2.25N-16 T25M 2.24 9 2.1
136020.0200 150.10-2.5N-16 T25M 2.51 9 2.5
136020.0300 150.10-3N-16 T25M 3.11 9 3.1
136020.0400 150.10-4N-16 T25M 4.11 9 4.1

136200 Disc milling cutter SECO
R335.19, with hub
Three-side milling cutter for groove milling and sawing, clockwise operation as arbour-mounted
cutter.
Indexable inserts: 136220, 236230
Spare parts: 138000
Note
* For ap = 7 mm: Indexable insert 335.19-1204.
* For ap = 8 mm: Indexable insert 335.19-12045.
K: Effective number of teeth for feed calculation.
Order ID D d H c K Z ap ae Turning plates
mm mm mm mm mm mm
136200.0100 63 22 50 40 3 6 4 10.5 ...1102..
136200.0200 63 22 50 40 3 6 5 10.5 ...1103..
136200.0300 63 22 50 40 3 6 6 10.5 ...1203..
136200.0400 80 22 50 40 4 8 6 20 ...1203..
136200.0500 80 22 50 40 4 8 7 / 8* 20 ...1204../12045..
136200.0600 100 27 50 48 6 12 4 24.2 ...1102..
136200.0700 100 27 50 48 5 10 6 24.2 ...1203..
136200.0800 100 27 50 48 5 10 10 24.2 ...1205..
136200.0900 100 27 50 48 5 10 12 24.2 ...1207..

136220 Indexable insert SECO 335.19
P M S

Geometry -MD09Geometry -M08Geome- For 136200
try -E07Geometry -E07Geometry -M08
Geometries
• M08: moderately hard machining at moderate chip thicknesses
• MD09: moderately hard and delicate machining at moderate chip thicknesses
Types
• F40M: for all materials, incl. superalloys, pre-finishing, finish-machining at low feed rates and/or
low cutting speeds, with/without cooling
• T25M: universally applicable for steel, stainless steel and superalloys.
Order ID Code Type I s ap ae
mm mm mm mm
136220.0100 335.19-1102-M08 F40M 11 2.3 4 10.5
136220.0220 335.19-1102T-MD09 T25M 11 2.3 4 10.5
136220.0300 335.19-1103-M08 F40M 11 2.7 5 10.5
136220.0420 335.19-1103T-MD09 T25M 11 2.7 5 10.5
136220.0500 335.19-1203-M08 F40M 12.7 3.2 6 10.5
136220.0620 335.19-1203T-MD09 T25M 12.7 3.2 6 10.5
136220.0800 335.19-1204-M08 F40M 12.7 4 7 20
136220.0920 335.19-1204T-MD09 T25M 12.7 4 7 20
136220.1000 335.19-12045-M08 F40M 12.7 4.5 8 20
136220.1120 335.19-12045T-MD09 T25M 12.7 4.5 8 20
136220.1200 335.19-1205-M08 F40M 12.7 5.4 10 24.2
136220.1320 335.19-1205T-MD09 T25M 12.7 5.4 10 24.2
