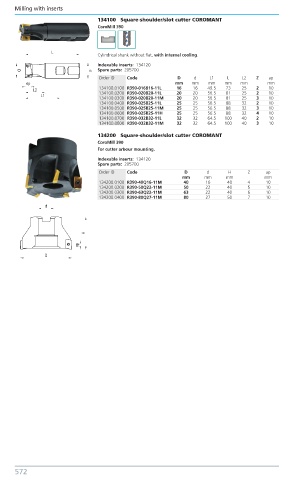

P. 581
Milling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
134100 Square-shoulder/slot cutter COROMANT
CoroMill 390
Cylindrical shank without flat, with internal cooling.
Indexable inserts: 134120
Spare parts: 205700
Order ID Code D d L1 L L2 Z ap
mm mm mm mm mm mm
134100.0100 R390-016B16-11L 16 16 49.5 73 25 2 10
134100.0200 R390-020B20-11L 20 20 56.5 81 25 2 10
134100.0300 R390-020B20-11M 20 20 56.5 81 25 3 10
134100.0400 R390-025B25-11L 25 25 56.5 88 32 2 10
134100.0500 R390-025B25-11M 25 25 56.5 88 32 3 10
134100.0600 R390-025B25-11H 25 25 56.5 88 32 4 10
134100.0700 R390-032B32-11L 32 32 64.5 100 40 2 10
134100.0800 R390-032B32-11M 32 32 64.5 100 40 3 10
134200 Square-shoulder/slot cutter COROMANT
CoroMill 390
For cutter arbour mounting.
Indexable inserts: 134120
Spare parts: 205700
Order ID Code D d H Z ap
mm mm mm mm
134200.0100 R390-40Q16-11M 40 16 40 4 10
134200.0200 R390-50Q22-11M 50 22 40 5 10
134200.0300 R390-63Q22-11M 63 22 40 6 10
134200.0400 R390-80Q27-11M 80 27 50 7 10
