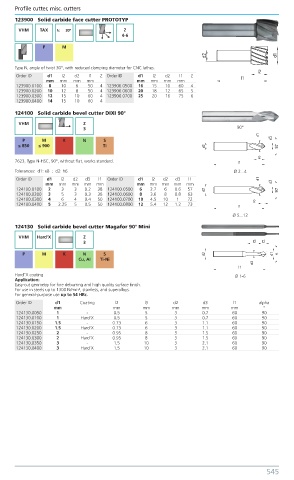

Profile cutter, misc. cutters Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
123900 Solid carbide face cutter PROTOTYP

VHM TAX λ: 30º Z
4-6
P M

Type N, angle of twist 30°, with reduced clamping diameter for CNC lathes.
Order ID d1 l2 d2 l1 Z Order ID d1 l2 d2 l1 Z
mm mm mm mm mm mm mm mm
123900.0100 8 10 6 50 4 123900.0500 16 15 10 60 4
123900.0200 10 12 8 50 4 123900.0600 20 18 12 65 5
123900.0300 12 15 10 60 4 123900.0700 25 20 16 75 6
123900.0400 14 15 10 60 4
124100 Solid carbide bevel cutter DIXI 90°
VHM Z
3 90°

P M K N S
≤ 850 ≤ 900 Ti

7623, Type N-HSC, 90°, without flat, works standard.
Tolerances: d1: e8 ; d2: h6 Ø 2...4
Order ID d1 l2 d2 d3 l1 Order ID d1 l2 d2 d3 l1
mm mm mm mm mm mm mm mm mm mm
124100.0100 2 3 3 0.2 38 124100.0500 6 2.7 6 0.6 57
124100.0200 3 5 3 0.3 38 124100.0600 8 3.6 8 0.8 63
124100.0300 4 6 4 0.4 50 124100.0700 10 4.5 10 1 72
124100.0400 5 2.25 5 0.5 50 124100.0800 12 5.4 12 1.2 73
Ø 5...12
124130 Solid carbide bevel cutter Magafor 90° Mini
VHM Hard'X Z
3
P M K N S
Cu, AI Ti-Ni

Hard‘‘X coating Ø 1-6
Application:
Easy-cut geometry for fine deburring and high quality surface finish.
For use in steels up to 1300 N/mm², stainless, and superalloys.
For general-purpose use up to 54 HRc.
Order ID d1 Coating l2 l3 d2 d3 l1 alpha
mm mm mm mm mm mm °
124130.0050 1 - 0.5 5 3 0.7 60 90
124130.0100 1 Hard‘X 0.5 5 3 0.7 60 90
124130.0150 1.5 - 0.73 6 3 1.1 60 90
124130.0200 1.5 Hard‘X 0.73 6 3 1.1 60 90
124130.0250 2 - 0.95 8 3 1.5 60 90
124130.0300 2 Hard‘X 0.95 8 3 1.5 60 90
124130.0350 3 - 1.5 10 3 2.1 60 90
124130.0400 3 Hard‘X 1.5 10 3 2.1 60 90

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 545
