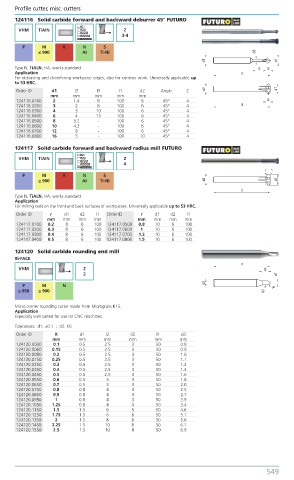

Profile cutter, misc. cutters Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
124116 Solid carbide forward and backward deburrer 45° FUTURO

VHM TiAIN Z
3-4
P M K N S
≤ 900 AI Ti-Ni

Type N, TiALN, HA, works standard
Application
For deburring and chamfering workpiece edges, also for contour work. Universally applicable up
to 53 HRC.
Order ID d1 l2 l3 l1 d2 Angle Z
mm mm mm mm mm
124116.0100 2 1.4 8 100 6 45° 4
124116.0200 3 2 8 100 6 45° 4
124116.0300 4 3 10 100 6 45° 4
124116.0400 6 4 15 100 6 45° 4
124116.0500 8 3.2 - 100 6 45° 4
124116.0600 10 4.3 - 100 6 45° 4
124116.0700 12 8 - 100 6 45° 4
124116.0800 16 5 - 100 10 45° 4
124117 Solid carbide forward and backward radius mill FUTURO
VHM TiAIN Z
4

P M K N S
≤ 900 AI Ti-Ni

Type N, TiALN, HA, works standard
Application
For milling radii on the front and back surfaces of workpieces. Universally applicable up to 53 HRC.
Order ID r d1 d2 l1 Order ID r d1 d2 l1
mm mm mm mm mm mm mm mm
124117.0100 0.2 8 6 100 124117.0500 0.8 10 6 100
124117.0200 0.3 8 6 100 124117.0600 1 10 6 100
124117.0300 0.4 8 6 100 124117.0700 1.2 10 6 100
124117.0400 0.5 8 6 100 124117.0800 1.5 10 6 100
124120 Solid carbide rounding end mill
Bi-FACE
VHM Z
2

P M N
≤ 850 ≤ 900

Micro corner rounding cutter made from Micrograin K15.
Application
Especially well suited for use on CNC machines.
Tolerances: d1: ±0.1 ; d2: h6
Order ID R d1 l2 d2 l1 d3
mm mm mm mm mm mm
124120.0030 0.1 0.5 2.5 3 50 0.8
124120.0060 0.15 0.5 2.5 3 50 0.9
124120.0090 0.2 0.5 2.5 3 50 1.0
124120.0150 0.25 0.5 2.5 3 50 1.1
124120.0250 0.3 0.5 2.5 3 50 1.2
124120.0350 0.4 0.5 2.5 3 50 1.4
124120.0450 0.5 0.5 2.5 3 50 1.6
124120.0550 0.6 0.5 3 3 50 1.8
124120.0650 0.7 0.5 3 3 50 2.0
124120.0750 0.8 0.8 4 3 50 2.5
124120.0850 0.9 0.8 4 3 50 2.7
124120.0950 1 0.8 4 3 50 2.9
124120.1050 1.25 0.8 4 4 50 3.4
124120.1150 1.5 1.5 6 5 50 4.6
124120.1250 1.75 1.5 6 6 50 5.1
124120.1350 2 1.5 8 6 50 5.6
124120.1450 2.25 1.5 10 8 50 6.1
124120.1550 2.5 1.5 10 8 50 6.6

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 549
