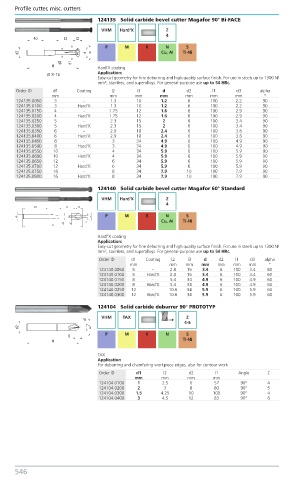

Profile cutter, misc. cutters Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
124135 Solid carbide bevel cutter Magafor 90° Bi-FACE

VHM Hard'X Z
4
P M K N S
Cu, AI Ti-Ni

Hard‘X coating
Ø 8-16 Application:
Easy-cut geometry for fine deburring and high quality surface finish. For use in steels up to 1300 N/
mm², stainless, and superalloys. For general-purpose use up to 54 HRc.
Order ID d1 Coating l2 l3 d d2 l1 d3 alpha
mm mm mm mm mm mm mm °
124135.0050 3 - 1.3 10 1.2 6 100 2.2 90
124135.0100 3 Hard‘X 1.3 10 1.2 6 100 2.2 90
124135.0150 4 - 1.75 12 1.6 6 100 2.9 90
124135.0200 4 Hard‘X 1.75 12 1.6 6 100 2.9 90
124135.0250 5 - 2.3 15 2 6 100 3.4 90
124135.0300 5 Hard‘X 2.3 15 2 6 100 3.4 90
124135.0350 6 - 2.9 18 2.4 6 100 3.8 90
124135.0400 6 Hard‘X 2.9 18 2.4 6 100 3.8 90
124135.0450 8 - 3 34 4.9 6 100 4.9 90
124135.0500 8 Hard‘X 3 34 4.9 6 100 4.9 90
124135.0550 10 - 4 34 5.9 6 100 5.9 90
124135.0600 10 Hard‘X 4 34 5.9 6 100 5.9 90
124135.0650 12 - 6 34 5.9 6 100 5.9 90
124135.0700 12 Hard‘X 6 34 5.9 6 100 5.9 90
124135.0750 16 - 8 34 7.9 10 100 7.9 90
124135.0800 16 Hard‘X 8 34 7.9 10 100 7.9 90
124140 Solid carbide bevel cutter Magafor 60° Standard
VHM Hard'X Z
4

P M K N S
Cu, AI Ti-Ni

Hard‘‘X coating
Application:
Easy-cut geometry for fine deburring and high quality surface finish. For use in steels up to 1300 N/
mm², stainless, and superalloys. For general-purpose use up to 54 HRc.
Order ID d1 Coating l2 l3 d d2 l1 d3 alpha
mm mm mm mm mm mm mm °
124140.0050 5 - 2.8 15 3.4 6 100 3.4 60
124140.0100 5 Hard‘X 2.8 15 3.4 6 100 3.4 60
124140.0150 8 - 5.4 34 4.9 6 100 4.9 60
124140.0200 8 Hard‘X 5.4 34 4.9 6 100 4.9 60
124140.0250 12 - 10.6 34 5.9 6 100 5.9 60
124140.0300 12 Hard‘X 10.6 34 5.9 6 100 5.9 60
124104 Solid carbide deburrer 90° PROTOTYP
VHM TAX Z
4-6
P M K N S
Ti-Ni

TAX
Application
For deburring and chamfering workpiece edges, also for contour work.
Order ID d1 l2 d2 l1 Angle Z
mm mm mm mm
124104.0100 1 2.5 6 57 90° 4
124104.0200 2 3 8 80 90° 5
124104.0300 1.5 4.25 10 100 90° 4
124104.0400 3 4.5 12 83 90° 6
