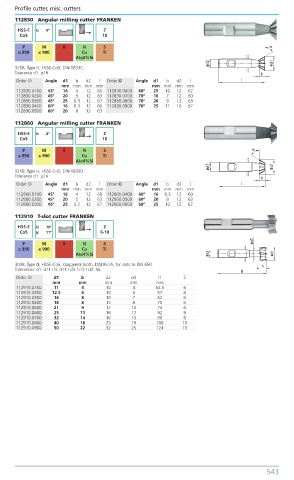

Page 552 - Benma | Blue book 5.0

Profile cutter, misc. cutters Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
112830 Angular milling cutter FRANKEN

HSS-E λ: 0º Z
Co5 10
P M K N S
≤ 850 ≤ 900 Cu Ti
AI≤4%Si
3208, Type H, HSSE-Co5, DIN 1833C.
Tolerance d1: js16
Order ID Angle d1 b d2 l Order ID Angle d1 b d2 l
mm mm mm mm mm mm mm mm
112830.0100 45° 16 4 12 60 112830.0600 60° 25 10 12 67
112830.0200 45° 20 5 12 63 112830.0700 70° 16 7 12 60
112830.0300 45° 25 6.3 12 67 112830.0800 70° 20 9 12 63
112830.0400 60° 16 6.3 12 60 112830.0900 70° 25 11 16 67
112830.0500 60° 20 8 12 63
112860 Angular milling cutter FRANKEN
HSS-E λ: 0º Z
Co5 10

P M K N S
≤ 850 ≤ 900 Cu Ti
AI≤4%Si
3218, Type H, HSSE-Co5, DIN 1833D.
Tolerance d1: js16
Order ID Angle d1 b d2 l Order ID Angle d1 b d2 l
mm mm mm mm mm mm mm mm
112860.0100 45° 16 4 12 60 112860.0400 60° 16 6.3 12 60
112860.0200 45° 20 5 12 63 112860.0500 60° 20 8 12 63
112860.0300 45° 25 6.3 12 67 112860.0600 60° 25 10 12 67
112910 T-slot cutter FRANKEN
HSS-E λ: 10º Z
Co5 γ: 11º 6-10
P M K N S
≤ 850 ≤ 900 Cu Ti
AI≤4%Si
3038, Type N, HSSE-Co5, staggered-tooth, DIN 851A, for slots to DIN 650.
Tolerances: d1: d11 / b: d11 / d3: h12 / d2: h6
Order ID d1 b d2 d3 l1 Z
mm mm mm mm mm
112910.0100 11 4 10 4 53.5 6
112910.0200 12.5 6 10 5 57 6
112910.0300 16 8 10 7 62 6
112910.0400 18 8 12 8 70 6
112910.0500 21 9 12 10 74 6
112910.0600 25 11 16 12 82 8
112910.0700 32 14 16 15 90 8
112910.0800 40 18 25 19 108 10
112910.0900 50 22 32 25 124 10
