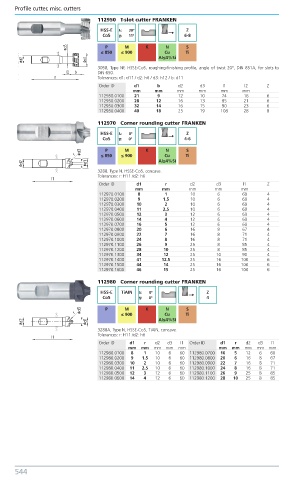

Profile cutter, misc. cutters Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
112950 T-slot cutter FRANKEN

HSS-E λ: 20º Z
Co5 γ: 11º 6-8
P M K N S
≤ 850 ≤ 900 Cu Ti
AI≤4%Si
3058, Type NF, HSSE-Co5, roughing-finishing profile, angle of twist 20°, DIN 851A, for slots to
DIN 650.
Tolerances: d1: d11 / d2: h6 / d3: h12 / b: d11
Order ID d1 b d2 d3 l1 l2 Z
mm mm mm mm mm mm
112950.0100 21 9 12 10 74 16 6
112950.0200 28 12 16 13 85 21 6
112950.0300 32 14 16 15 90 23 6
112950.0400 40 18 25 19 108 28 8
112970 Corner rounding cutter FRANKEN
HSS-E λ: 0º Z
Co5 γ: 0º 4-6

P M K N S
≤ 850 ≤ 900 Cu Ti
AI≤4%Si
3288, Type N, HSSE-Co5, concave.
Tolerances: r: H11 /d2: h6
Order ID d1 r d2 d3 l1 Z
mm mm mm mm mm
112970.0100 8 1 10 6 60 4
112970.0200 9 1.5 10 6 60 4
112970.0300 10 2 10 6 60 4
112970.0400 11 2.5 10 6 60 4
112970.0500 12 3 12 6 60 4
112970.0600 14 4 12 6 60 4
112970.0700 16 5 12 6 60 4
112970.0800 20 6 16 8 67 4
112970.0900 22 7 16 8 71 4
112970.1000 24 8 16 8 71 4
112970.1100 26 9 25 8 85 4
112970.1200 28 10 25 8 85 4
112970.1300 34 12 25 10 90 4
112970.1400 41 12.5 25 16 100 6
112970.1500 44 14 25 16 100 6
112970.1600 46 15 25 16 100 6
112980 Corner rounding cutter FRANKEN
HSS-E TiAIN λ: 0º Z
Co5 γ: 0º 4

P M K N S
≤ 900 Cu Ti
AI≤4%Si
3288A, Type N, HSSE-Co5, TiAlN, concave.
Tolerances: r: H11 /d2: h6
Order ID d1 r d2 d3 l1 Order ID d1 r d2 d3 l1
mm mm mm mm mm mm mm mm mm mm
112980.0100 8 1 10 6 60 112980.0700 16 5 12 6 60
112980.0200 9 1.5 10 6 60 112980.0800 20 6 16 8 67
112980.0300 10 2 10 6 60 112980.0900 22 7 16 8 71
112980.0400 11 2.5 10 6 60 112980.1000 24 8 16 8 71
112980.0500 12 3 12 6 60 112980.1100 26 9 25 8 85
112980.0600 14 4 12 6 60 112980.1200 28 10 25 8 85
