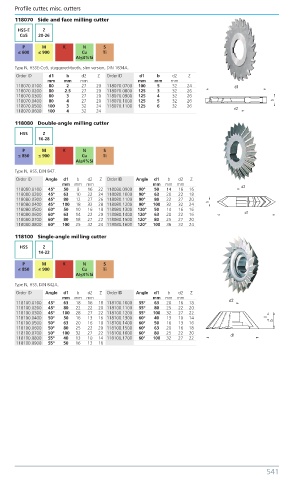

Profile cutter, misc. cutters Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
118070 Side and face milling cutter

HSS-E Z
Co5 20-26
P M K N S
≤ 600 ≤ 900 Cu Ti
AI≤4%Si
Type N, HSSE-Co5, staggered-tooth, slim version, DIN 1834A.
Order ID d1 b d2 Z Order ID d1 b d2 Z
mm mm mm mm mm mm
118070.0100 80 2 27 20 118070.0700 100 5 32 24
118070.0200 80 2.5 27 20 118070.0800 125 3 32 26
118070.0300 80 3 27 20 118070.0900 125 4 32 26
118070.0400 80 4 27 20 118070.1000 125 5 32 26
118070.0500 100 3 32 24 118070.1100 125 6 32 26
118070.0600 100 4 32 24
118080 Double-angle milling cutter
HSS Z
16-28

P M K N S
≤ 850 ≤ 900 Cu Ti
AI≤4%Si
Type N, HSS, DIN 847.
Order ID Angle d1 b d2 Z Order ID Angle d1 b d2 Z
mm mm mm mm mm mm
118080.0100 45° 50 8 16 22 118080.0900 90° 50 14 16 16
118080.0200 45° 63 10 22 24 118080.1000 90° 63 20 22 18
118080.0300 45° 80 12 27 26 118080.1100 90° 80 22 27 20
118080.0400 45° 100 18 32 28 118080.1200 90° 100 32 32 24
118080.0500 60° 50 10 16 18 118080.1300 120° 50 14 16 16
118080.0600 60° 63 14 22 20 118080.1400 120° 63 20 22 16
118080.0700 60° 80 18 27 22 118080.1500 120° 80 25 27 20
118080.0800 60° 100 25 32 24 118080.1600 120° 100 36 32 24
118100 Single-angle milling cutter
HSS Z
14-22
P M K N S
≤ 850 ≤ 900 Cu Ti
AI≤4%Si
Type N, HSS, DIN 842A.
Order ID Angle d1 b d2 Z Order ID Angle d1 b d2 Z
mm mm mm mm mm mm
118100.0100 45° 63 18 16 18 118100.1000 55° 63 20 16 18
118100.0200 45° 80 22 22 20 118100.1100 55° 80 25 22 20
118100.0300 45° 100 28 27 22 118100.1200 55° 100 32 27 22
118100.0400 50° 50 16 13 16 118100.1300 60° 40 13 10 14
118100.0500 50° 63 20 16 18 118100.1400 60° 50 16 13 16
118100.0600 50° 80 25 22 20 118100.1500 60° 63 20 16 18
118100.0700 50° 100 32 27 22 118100.1600 60° 80 25 22 20
118100.0800 55° 40 13 10 14 118100.1700 60° 100 32 27 22
118100.0900 55° 50 16 13 16
