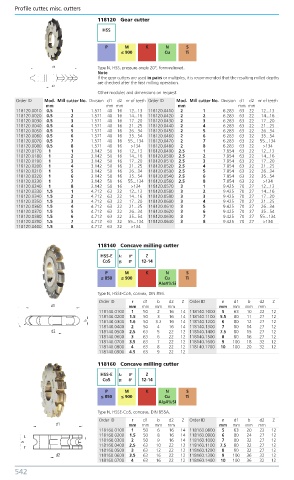

Profile cutter, misc. cutters Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
118120 Gear cutter

HSS

P M K N S
≤ 900 Cu Ti

Type N, HSS, pressure angle 20°, form-relieved.
Note
If the gear cutters are used in pairs or multiples, it is recommended that the resulting milled depths
are checked after the first milling operation.
Other modules and dimensions on request.
Order ID Mod. Mill cutter No. Division d1 d2 nr of teeth Order ID Mod. Mill cutter No. Division d1 d2 nr of teeth
mm mm mm mm mm mm
118120.0010 0.5 1 1.571 40 16 12...13 118120.0410 2 1 6.283 63 22 12...13
118120.0020 0.5 2 1.571 40 16 14...16 118120.0420 2 2 6.283 63 22 14...16
118120.0030 0.5 3 1.571 40 16 17...20 118120.0430 2 3 6.283 63 22 17...20
118120.0040 0.5 4 1.571 40 16 21...25 118120.0440 2 4 6.283 63 22 21...25
118120.0050 0.5 5 1.571 40 16 26...34 118120.0450 2 5 6.283 63 22 26...34
118120.0060 0.5 6 1.571 40 16 35...54 118120.0460 2 6 6.283 63 22 35...54
118120.0070 0.5 7 1.571 40 16 55...134 118120.0470 2 7 6.283 63 22 55...134
118120.0080 0.5 8 1.571 40 16 >134 118120.0480 2 8 6.283 63 22 >134
118120.0170 1 1 3.142 50 16 12...13 118120.0490 2.5 1 7.854 63 22 12...13
118120.0180 1 2 3.142 50 16 14...16 118120.0500 2.5 2 7.854 63 22 14...16
118120.0190 1 3 3.142 50 16 17...20 118120.0510 2.5 3 7.854 63 22 17...20
118120.0200 1 4 3.142 50 16 21...25 118120.0520 2.5 4 7.854 63 22 21...25
118120.0210 1 5 3.142 50 16 26...34 118120.0530 2.5 5 7.854 63 22 26...34
118120.0220 1 6 3.142 50 16 35...54 118120.0540 2.5 6 7.854 63 22 35...54
118120.0230 1 7 3.142 50 16 55...134 118120.0560 2.5 8 7.854 63 22 >134
118120.0240 1 8 3.142 50 16 >134 118120.0570 3 1 9.425 70 27 12...13
118120.0330 1.5 1 4.712 63 22 12...13 118120.0580 3 2 9.425 70 27 14...16
118120.0340 1.5 2 4.712 63 22 14...16 118120.0590 3 3 9.425 70 27 17...20
118120.0350 1.5 3 4.712 63 22 17...20 118120.0600 3 4 9.425 70 27 21...25
118120.0360 1.5 4 4.712 63 22 21...25 118120.0610 3 5 9.425 70 27 26...34
118120.0370 1.5 5 4.712 63 22 26...34 118120.0620 3 6 9.425 70 27 35...54
118120.0380 1.5 6 4.712 63 22 35...54 118120.0630 3 7 9.425 70 27 55...134
118120.0390 1.5 7 4.712 63 22 55...134 118120.0640 3 8 9.425 70 27 >134
118120.0400 1.5 8 4.712 63 22 >134

118140 Concave milling cutter
HSS-E λ: 0º Z
Co5 γ: 8º 12-14
P M K N S
≤ 850 ≤ 900 Cu Ti
AI≤4%Si
Type N, HSSE-Co5, convex, DIN 856.
Order ID r d1 b d2 Z Order ID r d1 b d2 Z
mm mm mm mm mm mm mm mm
118140.0100 1 50 2 16 14 118140.1000 5 63 10 22 12
118140.0200 1.5 50 3 16 14 118140.1100 5.5 80 11 27 12
118140.0300 1.6 50 3.2 16 14 118140.1200 6 80 12 27 12
118140.0400 2 50 4 16 14 118140.1300 7 80 14 27 12
118140.0500 2.5 63 5 22 12 118140.1400 7.5 80 15 27 12
118140.0600 3 63 6 22 12 118140.1500 8 80 16 27 12
118140.0700 3.5 63 7 22 12 118140.1600 9 100 18 32 12
118140.0800 4 63 8 22 12 118140.1700 10 100 20 32 12
118140.0900 4.5 63 9 22 12
118160 Concave milling cutter

HSS-E λ: 0º Z
Co5 γ: 8º 12-14
P M K N S
≤ 850 ≤ 900 Cu Ti
AI≤4%Si
Type N, HSSE-Co5, concave, DIN 855A.
Order ID r d1 b d2 Z Order ID r d1 b d2 Z
mm mm mm mm mm mm mm mm
118160.0100 1 50 6 16 14 118160.0800 5 63 20 22 12
118160.0200 1.5 50 8 16 14 118160.0900 6 80 24 27 12
118160.0300 2 50 9 16 14 118160.1000 7 80 32 27 12
118160.0400 2.5 63 10 22 12 118160.1100 7.5 80 32 27 12
118160.0500 3 63 12 22 12 118160.1200 8 80 32 27 12
118160.0600 3.5 63 16 22 12 118160.1300 9 100 36 32 12
118160.0700 4 63 16 22 12 118160.1400 10 100 36 32 12
