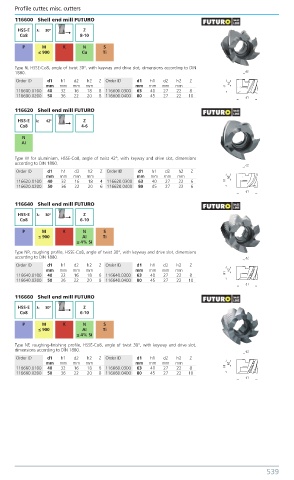

Profile cutter, misc. cutters Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
116600 Shell end mill FUTURO

HSS-E λ: 30º Z
Co8 8-10
P M K N S
≤ 900 Cu Ti

Type N, HSSE-Co8, angle of twist 30°, with keyway and drive slot, dimensions according to DIN
1880.
Order ID d1 h1 d2 h2 Z Order ID d1 h1 d2 h2 Z
mm mm mm mm mm mm mm mm
116600.0100 40 32 16 18 8 116600.0300 63 40 27 22 8
116600.0200 50 36 22 20 8 116600.0400 80 45 27 22 10

116620 Shell end mill FUTURO
HSS-E λ: 42º Z
Co8 4-6
N
AI

Type W for aluminium, HSSE-Co8, angle of twist 42°, with keyway and drive slot, dimensions
according to DIN 1880.
Order ID d1 h1 d2 h2 Z Order ID d1 h1 d2 h2 Z
mm mm mm mm mm mm mm mm
116620.0100 40 32 16 18 4 116620.0300 63 40 27 22 6
116620.0200 50 36 22 20 6 116620.0400 80 45 27 22 6

116640 Shell end mill FUTURO
HSS-E λ: 30º Z
Co8 6-10
P M K N S
≤ 900 AI Ti
≤ 4% Si
Type NR, roughing profile, HSSE-Co8, angle of twist 30°, with keyway and drive slot, dimensions
according to DIN 1880.
Order ID d1 h1 d2 h2 Z Order ID d1 h1 d2 h2 Z
mm mm mm mm mm mm mm mm
116640.0100 40 32 16 18 6 116640.0300 63 40 27 22 8
116640.0200 50 36 22 20 8 116640.0400 80 45 27 22 10

116660 Shell end mill FUTURO
HSS-E λ: 30º Z
Co8 6-10
P M K N S
≤ 900 AI Ti
≤ 4% Si
Type NF, roughing-finishing profile, HSSE-Co8, angle of twist 30°, with keyway and drive slot,
dimensions according to DIN 1880.
Order ID d1 h1 d2 h2 Z Order ID d1 h1 d2 h2 Z
mm mm mm mm mm mm mm mm
116660.0100 40 32 16 18 6 116660.0300 63 40 27 22 8
116660.0200 50 36 22 20 8 116660.0400 80 45 27 22 10
