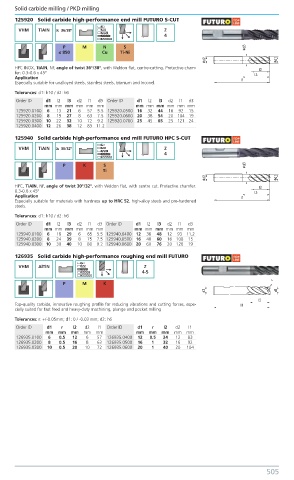

Page 514 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
125920 Solid carbide high-performance end mill FUTURO S-CUT

VHM TiAIN λ: 36/38º Z
4
P M N S
≤ 850 Cu Ti-Ni

HPC INOX, TiAlN, NF, angle of twist 36°/38°, with Weldon flat, centre-cutting. Protective cham-
fer: 0.3-0.6 x 45°
Application
Especially suitable for unalloyed steels, stainless steels, titanium and Inconel.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 l3 d2 l1 d3 Order ID d1 l2 l3 d2 l1 d3
mm mm mm mm mm mm mm mm mm mm mm mm
125920.0100 6 13 21 6 57 5.5 125920.0500 16 32 44 16 92 15
125920.0200 8 19 27 8 63 7.5 125920.0600 20 38 54 20 104 19
125920.0300 10 22 32 10 72 9.2 125920.0700 25 45 65 25 121 24
125920.0400 12 26 38 12 83 11.2
125940 Solid carbide high-performance end mill FUTURO HPC S-CUT
VHM TiAIN λ: 30/32º Z
4

P K S
Ti

HPC, TiAlN, NF, angle of twist 30°/32°, with Weldon flat, with centre cut. Protective chamfer:
0.3-0.6 x 45°
Application
Especially suitable for materials with hardness up to HRC 52, high-alloy steels and pre-hardened
steels.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 l3 d2 l1 d3 Order ID d1 l2 l3 d2 l1 d3
mm mm mm mm mm mm mm mm mm mm mm mm
125940.0100 6 18 29 6 65 5.5 125940.0400 12 36 48 12 93 11.2
125940.0200 8 24 39 8 75 7.5 125940.0500 16 48 60 16 108 15
125940.0300 10 30 40 10 80 9.2 125940.0600 20 60 76 20 126 19
126935 Solid carbide high-performance roughing end mill FUTURO
VHM AlTiN Z
4-5
P M K

Top-quality carbide, innovative roughing profile for reducing vibrations and cutting forces, espe-
cially suited for fast feed and heavy-duty machining, plunge and pocket milling
Tolerances: r: +/-0.05mm; d1: 0 / -0.03 mm; d2: h6
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm
126935.0100 6 0.5 12 6 57 126935.0400 12 0.5 24 12 83
126935.0200 8 0.5 16 8 63 126935.0500 16 1 32 16 92
126935.0300 10 0.5 20 10 72 126935.0600 20 1 40 20 104

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 505
