Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

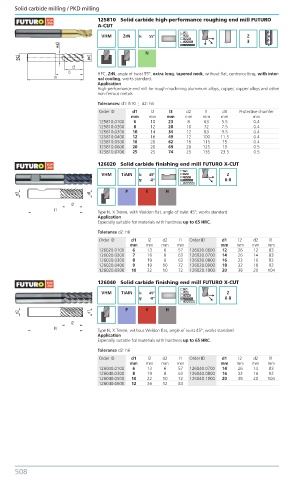

125810 Solid carbide high-performance roughing end mill FUTURO
A-CUT

VHM ZrN λ: 55º Z
3
N

HPC, ZrN, angle of twist 55°, extra long, tapered neck, without flat, centre-cutting, with inter-
nal cooling, works standard.
Application
High-performance end mill for rough-machining aluminium alloys, copper, copper alloys and other
non-ferrous metals.
Tolerances: d1: h10 ; d2: h6
Order ID d1 l2 l3 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm
125810.0100 6 10 23 8 63 5.5 0.4
125810.0200 8 12 28 10 72 7.5 0.4
125810.0300 10 14 34 12 83 9.5 0.4
125810.0400 12 16 49 12 100 11.5 0.4
125810.0500 16 20 62 16 115 15 0.4
125810.0600 20 20 69 20 125 19 0.5
125810.0700 25 25 74 25 135 23.5 0.5
126020 Solid carbide finishing end mill FUTURO X-CUT
VHM TiAIN λ: 45º Z
γ: -8º 6-8
P K H

Type N, X.Treme, with Weldon flat, angle of twist 45°, works standard.
Application
Especially suitable for materials with hardness up to 65 HRC.
Tolerance d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
126020.0100 6 13 6 57 126020.0600 12 26 12 83
126020.0200 7 16 8 63 126020.0700 14 26 14 83
126020.0300 8 19 8 63 126020.0800 16 32 16 92
126020.0400 9 19 10 72 126020.0900 18 32 18 92
126020.0500 10 22 10 72 126020.1000 20 38 20 104
126040 Solid carbide finishing end mill FUTURO X-CUT
VHM TiAIN λ: 45º Z
γ: -8º 6-8

P K H

Type N, X.Treme, without Weldon flat, angle of twist 45°, works standard.
Application
Especially suitable for materials with hardness up to 65 HRC.
Tolerance d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
126040.0100 6 13 6 57 126040.0700 14 26 14 83
126040.0300 8 19 8 63 126040.0800 16 32 16 92
126040.0500 10 22 10 72 126040.1000 20 38 20 104
126040.0600 12 26 12 83
