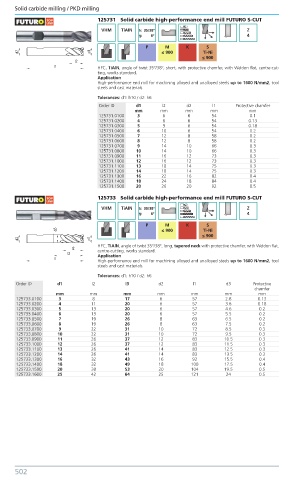

Page 511 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
125731 Solid carbide high-performance end mill FUTURO S-CUT

VHM TiAIN λ: 35/38º Z
γ: 6º 4
P M K S
≤ 900 Ti-Ni
≤ 900
HPC, TiAlN, angle of twist 35°/38°, short, with protective chamfer, with Weldon flat, centre-cut-
ting, works standard.
Application
High-performance end mill for machining alloyed and unalloyed steels up to 1600 N/mm2, tool
steels and cast materials.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 d2 l1 Protective chamfer
mm mm mm mm mm
125731.0100 3 6 6 54 0.1
125731.0200 4 8 6 54 0.13
125731.0300 5 9 6 54 0.18
125731.0400 6 10 6 54 0.2
125731.0500 7 12 8 58 0.2
125731.0600 8 12 8 58 0.2
125731.0700 9 14 10 66 0.3
125731.0800 10 14 10 66 0.3
125731.0900 11 16 12 73 0.3
125731.1000 12 16 12 73 0.3
125731.1100 13 18 14 75 0.3
125731.1200 14 18 14 75 0.3
125731.1300 16 22 16 82 0.4
125731.1400 18 24 18 84 0.4
125731.1500 20 26 20 92 0.5
125733 Solid carbide high-performance end mill FUTURO S-CUT
VHM TiAIN λ: 35/38º Z
γ: 6º 4

P M K S
≤ 900 Ti-Ni
≤ 900
HPC, TiAlN, angle of twist 35°/38°, long, tapered neck with protective chamfer, with Weldon flat,
centre-cutting, works standard.
Application
High-performance end mill for machining alloyed and unalloyed steels up to 1600 N/mm2, tool
steels and cast materials.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 l3 d2 l1 d3 Protective
chamfer
mm mm mm mm mm mm mm
125733.0100 3 8 17 6 57 2.8 0.13
125733.0200 4 11 20 6 57 3.6 0.18
125733.0300 5 13 20 6 57 4.6 0.2
125733.0400 6 13 20 6 57 5.5 0.2
125733.0500 7 19 26 8 63 6.5 0.2
125733.0600 8 19 26 8 63 7.5 0.2
125733.0700 9 22 31 10 72 8.5 0.3
125733.0800 10 22 31 10 72 9.5 0.3
125733.0900 11 26 37 12 83 10.5 0.3
125733.1000 12 26 37 12 83 11.5 0.3
125733.1100 13 26 41 14 83 12.5 0.3
125733.1200 14 26 41 14 83 13.5 0.3
125733.1300 16 32 43 16 92 15.5 0.4
125733.1400 18 32 49 18 100 17.5 0.4
125733.1500 20 38 53 20 104 19.5 0.5
125733.1600 25 42 64 25 121 24 0.5
