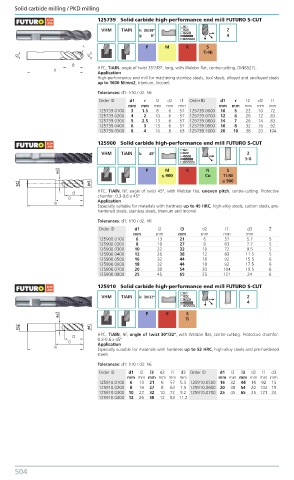

125739 Solid carbide high-performance end mill FUTURO S-CUT

VHM TiAIN λ: 35/38º Z
γ: 6º 4
P M K S
Ti-Ni

HPC, TiAlN, angle of twist 35°/38°, long, with Weldon flat, centre-cutting, DIN6527L.
Application
High-performance end mill for machining stainless steels, tool steels, alloyed and unalloyed steels
up to 1600 N/mm2, titanium, Inconel.
Tolerances: d1: h10 / d2: h6
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm
125739.0100 3 1.5 8 6 57 125739.0600 10 5 22 10 72
125739.0200 4 2 10 6 57 125739.0700 12 6 26 12 83
125739.0300 5 2.5 13 6 57 125739.0800 14 7 26 14 83
125739.0400 6 3 13 6 57 125739.0900 16 8 32 16 92
125739.0500 8 4 16 8 63 125739.1000 20 10 38 20 104
125900 Solid carbide high-performance end mill FUTURO S-CUT
VHM TiAIN λ: 45º Z
5-6

P M K N S
≤ 900 Cu Ti-Ni
≤ 900
HPC, TiAlN, NF, angle of twist 45°, with Weldon flat, uneven pitch, centre-cutting. Protective
chamfer: 0.3-0.6 x 45°
Application
Especially suitable for materials with hardness up to 45 HRC, high-alloy steels, carbon steels, pre-
hardened steels, stainless steels, titanium and Inconel.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 l3 d2 l1 d3 Z
mm mm mm mm mm mm
125900.0100 6 13 21 6 57 5.7 5
125900.0200 8 19 27 8 63 7.7 5
125900.0300 10 22 32 10 72 9.5 5
125900.0400 12 26 38 12 83 11.5 5
125900.0500 16 32 44 16 92 15.5 6
125900.0600 18 32 44 18 92 17.5 6
125900.0700 20 38 54 20 104 19.5 6
125900.0800 25 45 65 25 121 24 6
125910 Solid carbide high-performance end mill FUTURO S-CUT
VHM TiAIN λ: 30/32º Z
4
P K S
Ti

HPC, TiAlN, NF, angle of twist 30°/32°, with Weldon flat, centre-cutting. Protective chamfer:
0.3-0.6 x 45°
Application
Especially suitable for materials with hardness up to 52 HRC, high-alloy steels and pre-hardened
steels.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 l3 d2 l1 d3 Order ID d1 l2 l3 d2 l1 d3
mm mm mm mm mm mm mm mm mm mm mm mm
125910.0100 6 13 21 6 57 5.5 125910.0500 16 32 44 16 92 15
125910.0200 8 19 27 8 63 7.5 125910.0600 20 38 54 20 104 19
125910.0300 10 22 32 10 72 9.2 125910.0700 25 45 65 25 121 24
125910.0400 12 26 38 12 83 11.2
