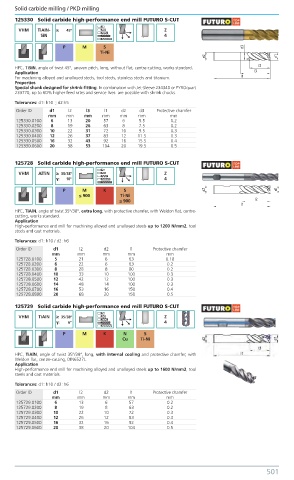

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 25330 Solid carbide high-performance end mill FUTURO S-CUT

VHM TiAIN- λ: 45º Z
SiN 4
P M S
Ti-Ni

HPC, TiSiN, angle of twist 45°, uneven pitch, long, without flat, centre-cutting, works standard.
Application
For machining alloyed and unalloyed steels, tool steels, stainless steels and titanium.
Properties
Special shank designed for shrink-fitting. In combination with Jet-Sleeve 234340 or PYROquart
233770, up to 60% higher feed rates and service lives are possible with shrink chucks.
Tolerances: d1: h10 ; d2:h5
Order ID d1 l2 l3 l1 d2 d3 Protective chamfer
mm mm mm mm mm mm mm
125330.0100 6 13 20 57 6 5.5 0.2
125330.0200 8 19 26 63 8 7.5 0.2
125330.0300 10 22 31 72 10 9.5 0.3
125330.0400 12 26 37 83 12 11.5 0.3
125330.0500 16 32 43 92 16 15.5 0.4
125330.0600 20 38 53 104 20 19.5 0.5

1 25728 Solid carbide high-performance end mill FUTURO S-CUT
VHM AlTiN λ: 35/38º Z
γ: 10º 4
P M K S
≤ 900 Ti-Ni
≤ 900
HPC, TiAlN, angle of twist 35°/38°, extra long, with protective chamfer, with Weldon flat, centre-
cutting, works standard.
Application
High-performance end mill for machining alloyed and unalloyed steels up to 1200 N/mm2, tool
steels and cast materials.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 d2 l1 Protective chamfer
mm mm mm mm mm
125728.0100 5 21 6 63 0.18
125728.0200 6 22 6 63 0.2
125728.0300 8 28 8 80 0.2
125728.0400 10 33 10 100 0.3
125728.0500 12 42 12 100 0.3
125728.0600 14 48 14 100 0.3
125728.0700 16 53 16 150 0.4
125728.0800 20 68 20 150 0.5
1 25729 Solid carbide high-performance end mill FUTURO S-CUT
VHM TiAIN λ: 35/38º Z
γ: 6º 4
P M K N S
Cu Ti-Ni

HPC, TiAlN, angle of twist 35°/38°, long, with internal cooling and protective chamfer, with
Weldon flat, centre-cutting, DIN6527L.
Application
High-performance end mill for machining alloyed and unalloyed steels up to 1600 N/mm2, tool
steels and cast materials.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 d2 l1 Protective chamfer
mm mm mm mm mm
125729.0100 6 13 6 57 0.2
125729.0200 8 19 8 63 0.2
125729.0300 10 22 10 72 0.3
125729.0400 12 26 12 83 0.3
125729.0500 16 32 16 92 0.4
125729.0600 20 38 20 104 0.5

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 501
