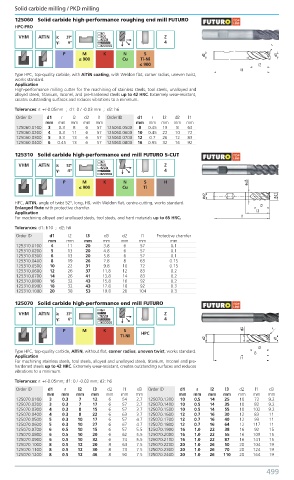

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
125060 Solid carbide high-performance roughing end mill FUTURO
HPC-PRO
VHM AlTiN λ: 37º Z
γ: 6º 4
P M K N S
≤ 900 Cu Ti-Ni
≤ 900
Type HPC, top-quality carbide, with AlTiN coating, with Weldon flat, corner radius, uneven twist,
works standard.
Application
High-performance milling cutter for the machining of stainless steels, tool steels, unalloyed and
alloyed steels, titanium, Inconel, and pre-hardened steels up to 42 HRC. Extremely wear-resistant,
creates outstanding surfaces and reduces vibrations to a minimum.
Tolerances: r: +/-0.05mm ; d1: 0 / -0.03 mm ; d2: h6
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm
125060.0100 3 0.3 8 6 57 125060.0500 8 0.45 19 8 63
125060.0200 4 0.3 11 6 57 125060.0600 10 0.45 22 10 72
125060.0300 5 0.3 13 6 57 125060.0700 12 0.7 26 12 83
125060.0400 6 0.45 13 6 57 125060.0800 16 0.95 32 16 92
125310 Solid carbide high-performance end mill FUTURO S-CUT

VHM AlTiN λ: 52º Z
γ: -5º 4
P M K N S H
≤ 900 Cu Ti

HPC, AlTiN, angle of twist 52°, long, HB, with Weldon flat, centre-cutting, works standard.
Enlarged flute with protective chamfer.
Application
For machining alloyed and unalloyed steels, tool steels, and hard materials up to 65 HRC.
Tolerances: d1: h10 ; d2: h6
Order ID d1 l2 l3 d3 d2 l1 Protective chamfer
mm mm mm mm mm mm mm
125310.0100 4 11 20 3.8 6 57 0.1
125310.0200 5 13 20 4.8 6 57 0.1
125310.0300 6 13 20 5.8 6 57 0.1
125310.0400 8 19 26 7.8 8 63 0.15
125310.0500 10 22 31 9.8 10 72 0.15
125310.0600 12 26 37 11.8 12 83 0.2
125310.0700 14 26 41 13.8 14 83 0.2
125310.0800 16 32 43 15.8 16 92 0.2
125310.0900 18 32 43 17.8 18 92 0.3
125310.1000 20 38 53 19.8 20 104 0.3
125070 Solid carbide high-performance end mill FUTURO
VHM AlTiN λ: 37º Z
γ: 6º 4
P M K S
Ti-Ni HPC

Type HPC, top-quality carbide, AlTiN, without flat, corner radius, uneven twist, works standard.
Application
For machining stainless steels, tool steels, alloyed and unalloyed steels, titanium, Inconel and pre-
hardened steels up to 42 HRC. Extremely wear-resistant, creates outstanding surfaces and reduces
vibrations to a minimum.
Tolerances: r: +/-0.05mm; d1: 0 / -0.03 mm; d2: h6
Order ID d1 r l2 l3 d2 l1 d3 Order ID d1 r l2 l3 d2 l1 d3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm
125070.0100 3 0.3 7 12 6 54 2.7 125070.1300 10 0.5 14 25 10 72 9.2
125070.0200 3 0.3 7 17 6 57 2.7 125070.1400 10 0.5 14 35 10 82 9.2
125070.0300 4 0.3 8 15 6 57 3.7 125070.1500 10 0.5 14 55 10 102 9.2
125070.0400 4 0.3 8 22 6 63 3.7 125070.1600 12 0.7 16 30 12 83 11
125070.0500 5 0.3 10 17 6 57 4.7 125070.1700 12 0.7 16 40 12 93 11
125070.0600 5 0.3 10 27 6 67 4.7 125070.1800 12 0.7 16 64 12 117 11
125070.0700 6 0.5 10 15 6 57 5.5 125070.1900 16 1.0 22 38 16 92 15
125070.0800 6 0.5 10 20 6 62 5.5 125070.2000 16 1.0 22 55 16 109 15
125070.0900 6 0.5 10 32 6 74 5.5 125070.2100 16 1.0 22 87 16 141 15
125070.1000 8 0.5 12 20 8 63 7.5 125070.2200 20 1.0 26 50 20 104 19
125070.1100 8 0.5 12 30 8 73 7.5 125070.2300 20 1.0 26 70 20 124 19
125070.1200 8 0.5 12 46 8 90 7.5 125070.2400 20 1.0 26 110 20 164 19

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 499
