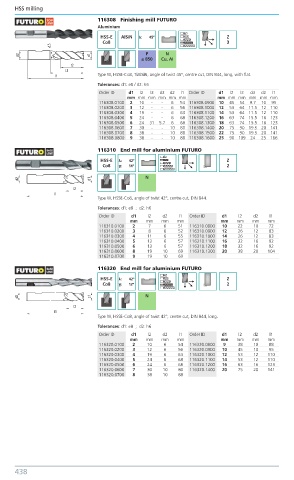

Page 447 - Benma | Blue book 5.0

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
116308 Finishing mill FUTURO
Aluminium
HSS-E AISiN λ: 45º Z
Co8 3
P N
≤ 850 Cu, AI

Type W, HSSE-Co8, TiAlSiN, angle of twist 45°, centre cut, DIN 844, long, with flat.
Tolerances: d1: e8 / d2: h6
Order ID d1 l2 l3 d3 d2 l1 Order ID d1 l2 l3 d3 d2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
116308.0100 2 10 - - 6 54 116308.0900 10 45 54 9.7 10 95
116308.0200 3 12 - - 6 56 116308.1000 12 53 64 11.5 12 110
116308.0300 4 19 - - 6 63 116308.1100 14 53 64 11.5 12 110
116308.0400 5 24 - - 6 68 116308.1200 16 63 74 15.5 16 123
116308.0500 6 24 31 5.7 6 68 116308.1300 18 63 74 15.5 16 123
116308.0600 7 30 - - 10 80 116308.1400 20 75 90 19.5 20 141
116308.0700 8 38 - - 10 88 116308.1500 22 75 90 19.5 20 141
116308.0800 9 38 - - 10 88 116308.1600 25 90 109 24 25 166

116310 End mill for aluminium FUTURO
HSS-E λ: 42º Z
Co8 γ: 14º 2
N

Type W, HSSE-Co8, angle of twist 42°, centre cut, DIN 844.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116310.0100 2 7 6 51 116310.0800 10 22 10 72
116310.0200 3 8 6 52 116310.0900 12 26 12 83
116310.0300 4 11 6 55 116310.1000 14 26 12 83
116310.0400 5 13 6 57 116310.1100 16 32 16 92
116310.0500 6 13 6 57 116310.1200 18 32 16 92
116310.0600 8 19 10 69 116310.1300 20 38 20 104
116310.0700 9 19 10 69
116320 End mill for aluminium FUTURO

HSS-E λ: 42º Z
Co8 γ: 12º 2
N

Type W, HSSE-Co8, angle of twist 42°, centre cut, DIN 844, long.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116320.0100 2 10 6 54 116320.0800 9 38 10 88
116320.0200 3 12 6 56 116320.0900 10 45 10 95
116320.0300 4 19 6 63 116320.1000 12 53 12 110
116320.0400 5 24 6 68 116320.1100 14 53 12 110
116320.0500 6 24 6 68 116320.1200 16 63 16 123
116320.0600 7 30 10 80 116320.1400 20 75 20 141
116320.0700 8 38 10 88

438 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
