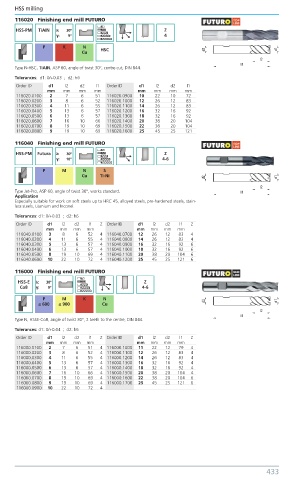

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
116020 Finishing end mill FUTURO

HSS-PM TiAIN λ: 30º Z
γ: 9º 4
P K N HSC
Cu

Type N-HSC, TiAIN, ASP 60, angle of twist 30°, centre cut, DIN 844.
Tolerances: d1: 0/+0.03 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116020.0100 2 7 6 51 116020.0900 10 22 10 72
116020.0200 3 8 6 52 116020.1000 12 26 12 83
116020.0300 4 11 6 55 116020.1100 14 26 12 83
116020.0400 5 13 6 57 116020.1200 16 32 16 92
116020.0500 6 13 6 57 116020.1300 18 32 16 92
116020.0600 7 16 10 66 116020.1400 20 38 20 104
116020.0700 8 19 10 69 116020.1500 22 38 20 104
116020.0800 9 19 10 69 116020.1600 25 45 25 121
116040 Finishing end mill FUTURO
HSS-PM Futura λ: 30º Z
γ: 10º 4-6
P M N S
Cu Ti-Ni

Type Jet-Pro, ASP 60, angle of twist 30°, works standard.
Application
Especially suitable for work on soft steels up to HRC 45, alloyed steels, pre-hardened steels, stain-
less steels, titanium and Inconel.
Tolerances: d1: 0/+0.03 ; d2: h6
Order ID d1 l2 d2 l1 Z Order ID d1 l2 d2 l1 Z
mm mm mm mm mm mm mm mm
116040.0100 3 8 6 52 4 116040.0700 12 26 12 83 4
116040.0200 4 11 6 55 4 116040.0800 14 26 12 83 4
116040.0300 5 13 6 57 4 116040.0900 16 32 16 92 6
116040.0400 6 13 6 57 4 116040.1000 18 32 16 92 6
116040.0500 8 19 10 69 4 116040.1100 20 38 20 104 6
116040.0600 10 22 10 72 4 116040.1200 25 45 25 121 6
116000 Finishing end mill FUTURO
HSS-E λ: 30º Z
Co8 γ: 9º 4-6

P M K N
≤ 600 ≤ 900 Cu

Type N, HSSE-Co8, angle of twist 30°, 2 teeth to the centre, DIN 844.
Tolerances: d1: 0/+0.04 ; d2: h6
Order ID d1 l2 d2 l1 Z Order ID d1 l2 d2 l1 Z
mm mm mm mm mm mm mm mm
116000.0100 2 7 6 51 4 116000.1000 11 22 12 79 4
116000.0200 3 8 6 52 4 116000.1100 12 26 12 83 4
116000.0300 4 11 6 55 4 116000.1200 14 26 12 83 4
116000.0400 5 13 6 57 4 116000.1300 16 32 16 92 4
116000.0500 6 13 6 57 4 116000.1400 18 32 16 92 4
116000.0600 7 16 10 66 4 116000.1500 20 38 20 104 4
116000.0700 8 19 10 69 4 116000.1600 22 38 20 104 6
116000.0800 9 19 10 69 4 116000.1700 25 45 25 121 6
116000.0900 10 22 10 72 4
