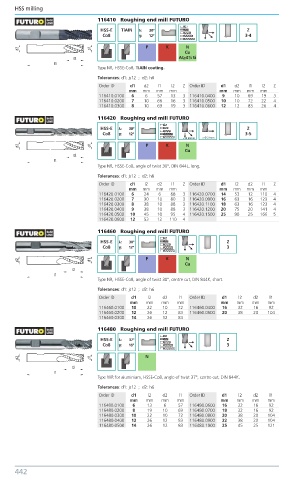

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
116410 Roughing end mill FUTURO

HSS-E TiAIN λ: 30º Z
Co8 γ: 12º 3-4
P K N
Cu
AI≥4%Si
Type NR, HSSE-Co8, TiAlN coating.
Tolerances: d1: js12 ; d2: h6
Order ID d1 d2 l1 l2 Z Order ID d1 d2 l1 l2 Z
mm mm mm mm mm mm mm mm
116410.0100 6 6 57 13 3 116410.0400 9 10 69 19 3
116410.0200 7 10 66 16 3 116410.0500 10 10 72 22 4
116410.0300 8 10 69 19 3 116410.0600 12 12 83 26 4
116420 Roughing end mill FUTURO
HSS-E λ: 30º Z
Co8 γ: 12º 3-5
< Ø 20mm > Ø 21mm
P K N
Cu

Type NR, HSSE-Co8, angle of twist 30°, DIN 844L, long.
Tolerances: d1: js12 ; d2: h6
Order ID d1 l2 d2 l1 Z Order ID d1 l2 d2 l1 Z
mm mm mm mm mm mm mm mm
116420.0100 6 24 6 68 3 116420.0700 14 53 12 110 4
116420.0200 7 30 10 80 3 116420.0900 16 63 16 123 4
116420.0300 8 38 10 88 3 116420.1100 18 63 16 123 4
116420.0400 9 38 10 88 3 116420.1200 20 75 20 141 4
116420.0500 10 45 10 95 4 116420.1500 25 90 25 166 5
116420.0600 12 53 12 110 4
116460 Roughing end mill FUTURO
HSS-E λ: 30º Z
Co8 γ: 12º 3
P K N
Cu

Type NR, HSSE-Co8, angle of twist 30°, centre cut, DIN 844K, short.
Tolerances: d1: js12 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116460.0100 10 22 10 72 116460.0400 16 32 16 92
116460.0200 12 26 12 83 116460.0600 20 38 20 104
116460.0300 14 26 12 83

116480 Roughing end mill FUTURO
HSS-E λ: 37º Z
Co8 γ: 16º 3
N

Type WR for aluminium, HSSE-Co8, angle of twist 37°, centre cut, DIN 844K.
Tolerances: d1: js12 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116480.0100 6 13 6 57 116480.0600 16 32 16 92
116480.0200 8 19 10 69 116480.0700 18 32 16 92
116480.0300 10 22 10 72 116480.0800 20 38 20 104
116480.0400 12 26 12 83 116480.0900 22 38 20 104
116480.0500 14 26 12 83 116480.1000 25 45 25 121

442 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
