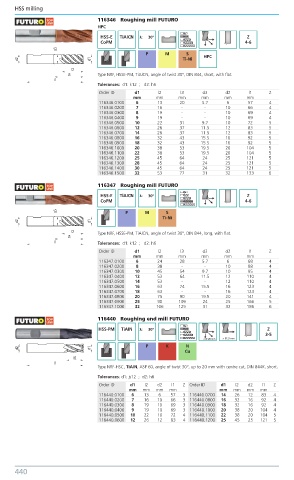

116346 Roughing mill FUTURO
HPC
HSS-E TiAICN λ: 30º Z
CoPM 4-6
P M S HPC
Ti-Ni

Type NRF, HSSE-PM, TiAlCN, angle of twist 30°, DIN 844, short, with flat.
Tolerances: d1: k12 ; d2: h6
Order ID d1 l2 l3 d3 d2 l1 Z
mm mm mm mm mm mm
116346.0100 6 13 20 5.7 6 57 4
116346.0200 7 16 - - 10 66 4
116346.0300 8 19 - - 10 69 4
116346.0400 9 19 - - 10 69 4
116346.0500 10 22 31 9.7 10 72 5
116346.0600 12 26 37 11.5 12 83 5
116346.0700 14 26 37 11.5 12 83 5
116346.0800 16 32 43 15.5 16 92 5
116346.0900 18 32 43 15.5 16 92 5
116346.1000 20 38 53 19.5 20 104 5
116346.1100 22 38 53 19.5 20 104 5
116346.1200 25 45 64 24 25 121 5
116346.1300 28 45 64 24 25 121 5
116346.1400 30 45 64 24 25 121 5
116346.1500 32 53 77 31 32 133 6

116347 Roughing mill FUTURO
HSS-E TiAICN λ: 30º Z
CoPM 4-6
P M S
Ti-Ni

Type NRF, HSSE-PM, TiAlCN, angle of twist 30°, DIN 844, long, with flat.
Tolerances: d1: k12 ; d2: h6
Order ID d1 l2 l3 d3 d2 l1 Z
mm mm mm mm mm mm
116347.0100 6 24 28 5.7 6 68 4
116347.0200 8 38 - - 10 88 4
116347.0300 10 45 54 9.7 10 95 4
116347.0400 12 53 64 11.5 12 110 4
116347.0500 14 53 - - 12 110 4
116347.0600 16 63 74 15.5 16 123 4
116347.0700 18 63 - - 16 123 4
116347.0800 20 75 90 19.5 20 141 4
116347.0900 25 90 109 24 25 166 5
116347.1000 32 106 125 31 32 186 6
116440 Roughing end mill FUTURO

HSS-PM TiAIN λ: 30º Z
3-5
< Ø 20mm > Ø 21mm
P K N
Cu

Type NRF-HSC, TiAIN, ASP 60, angle of twist 30°, up to 20 mm with centre cut, DIN 844K, short.
Tolerances: d1: js12 ; d2: h6
Order ID d1 l2 d2 l1 Z Order ID d1 l2 d2 l1 Z
mm mm mm mm mm mm mm mm
116440.0100 6 13 6 57 3 116440.0700 14 26 12 83 4
116440.0200 7 16 10 66 3 116440.0800 16 32 16 92 4
116440.0300 8 19 10 69 3 116440.0900 18 32 16 92 4
116440.0400 9 19 10 69 3 116440.1000 20 38 20 104 4
116440.0500 10 22 10 72 4 116440.1100 22 38 20 104 5
116440.0600 12 26 12 83 4 116440.1200 25 45 25 121 5
