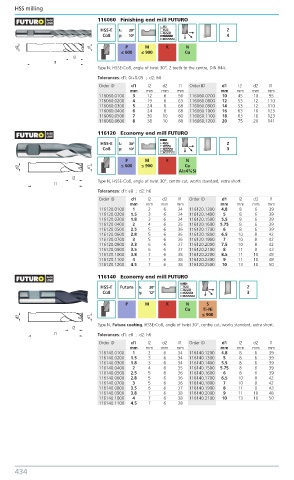

Page 443 - Benma | Blue book 5.0

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
116060 Finishing end mill FUTURO

HSS-E λ: 30º Z
Co8 γ: 10º 4
P M K N
≤ 600 ≤ 900 Cu

Type N, HSSE-Co8, angle of twist 30°, 2 teeth to the centre, DIN 844.
Tolerances: d1: 0/+0.05 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116060.0100 3 12 6 56 116060.0700 10 45 10 95
116060.0200 4 19 6 63 116060.0800 12 53 12 110
116060.0300 5 24 6 68 116060.0900 14 53 12 110
116060.0400 6 24 6 68 116060.1000 16 63 16 123
116060.0500 7 30 10 80 116060.1100 18 63 16 123
116060.0600 8 38 10 88 116060.1200 20 75 20 141
116120 Economy end mill FUTURO
HSS-E λ: 30º Z
Co8 γ: 10º 3

P M K N
≤ 600 ≤ 900 Cu
AI≤4%Si
Type N, HSSE-Co8, angle of twist 30°, centre cut, works standard, extra short.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116120.0100 1 2 6 34 116120.1300 4.8 8 6 39
116120.0200 1.5 3 6 34 116120.1400 5 8 6 39
116120.0300 1.8 3 6 34 116120.1500 5.5 8 6 39
116120.0400 2 4 6 35 116120.1600 5.75 8 6 39
116120.0500 2.5 5 6 36 116120.1700 6 8 6 39
116120.0600 2.8 5 6 36 116120.1800 6.5 10 8 42
116120.0700 3 5 6 36 116120.1900 7 10 8 42
116120.0800 3.3 6 6 37 116120.2000 7.5 10 8 42
116120.0900 3.5 6 6 37 116120.2100 8 11 8 43
116120.1000 3.8 7 6 38 116120.2200 8.5 11 10 48
116120.1100 4 7 6 38 116120.2300 9 11 10 48
116120.1200 4.5 7 6 38 116120.2500 10 13 10 50
116140 Economy end mill FUTURO
HSS-E Futura λ: 30º Z
Co8 γ: 12º 3
P M K N S
Cu Ti-Ni
≤ 900
Type N, Futura coating, HSSE-Co8, angle of twist 30°, centre cut, works standard, extra short.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116140.0100 1 2 6 34 116140.1200 4.8 8 6 39
116140.0200 1.5 3 6 34 116140.1300 5 8 6 39
116140.0300 1.8 3 6 34 116140.1400 5.5 8 6 39
116140.0400 2 4 6 35 116140.1500 5.75 8 6 39
116140.0500 2.5 5 6 36 116140.1600 6 8 6 39
116140.0600 2.8 5 6 36 116140.1700 6.5 10 8 42
116140.0700 3 5 6 36 116140.1800 7 10 8 42
116140.0800 3.5 6 6 37 116140.1900 8 11 8 43
116140.0900 3.8 7 6 38 116140.2000 9 11 10 48
116140.1000 4 7 6 38 116140.2100 10 13 10 50
116140.1100 4.5 7 6 38
