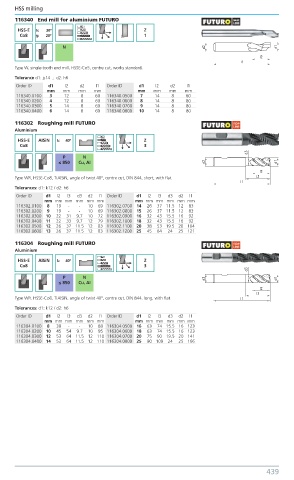

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
116340 End mill for aluminium FUTURO

HSS-E λ: 30º Z
Co8 γ: 20º 1
N

Type W, single-tooth end mill, HSSE-Co5, centre cut, works standard.
Tolerance d1: js14 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116340.0100 3 12 8 60 116340.0500 7 14 8 60
116340.0200 4 12 8 60 116340.0600 8 14 8 80
116340.0300 5 14 8 60 116340.0700 9 14 8 80
116340.0400 6 14 8 60 116340.0800 10 14 8 80
116302 Roughing mill FUTURO
Aluminium
HSS-E AISiN λ: 40º Z
Co8 3
P N
≤ 850 Cu, AI

Type WR, HSSE-Co8, TiAlSiN, angle of twist 40°, centre cut, DIN 844, short, with flat.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l3 d3 d2 l1 Order ID d1 l2 l3 d3 d2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
116302.0100 8 19 - - 10 69 116302.0700 14 26 37 11.5 12 83
116302.0200 9 19 - - 10 69 116302.0800 15 26 37 11.5 12 83
116302.0300 10 22 31 9.7 10 72 116302.0900 16 32 43 15.5 16 92
116302.0400 11 22 33 9.7 12 79 116302.1000 18 32 43 15.5 16 92
116302.0500 12 26 37 11.5 12 83 116302.1100 20 38 53 19.5 20 104
116302.0600 13 26 37 11.5 12 83 116302.1200 25 45 64 24 25 121
116304 Roughing mill FUTURO
Aluminium
HSS-E AISiN λ: 40º Z
Co8 3
P N
≤ 850 Cu, AI

Type WR, HSSE-Co8, TiAlSiN, angle of twist 40°, centre cut, DIN 844, long, with flat.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l3 d3 d2 l1 Order ID d1 l2 l3 d3 d2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
116304.0100 8 38 - - 10 88 116304.0500 16 63 74 15.5 16 123
116304.0200 10 45 54 9.7 10 95 116304.0600 18 63 74 15.5 16 123
116304.0300 12 53 64 11.5 12 110 116304.0700 20 75 90 19.5 20 141
116304.0400 14 53 64 11.5 12 110 116304.0800 25 90 109 24 25 166
