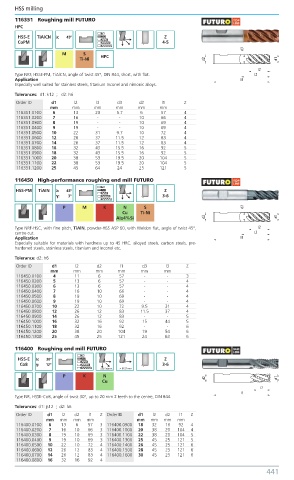

Page 450 - Benma | Blue book 5.0

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
116351 Roughing mill FUTURO
HPC
HSS-E TiAICN λ: 45º Z
CoPM 4-5
M S HPC
Ti-Ni

Type NRF, HSSE-PM, TiAlCN, angle of twist 45°, DIN 844, short, with flat.
Application
Especially well suited for stainless steels, titanium Inconel and nimonic alloys.
Tolerances: d1: k12 ; d2: h6
Order ID d1 l2 l3 d3 d2 l1 Z
mm mm mm mm mm mm
116351.0100 6 13 20 5.7 6 57 4
116351.0200 7 16 - - 10 66 4
116351.0300 8 19 - - 10 69 4
116351.0400 9 19 - - 10 69 4
116351.0500 10 22 31 9.7 10 72 4
116351.0600 12 26 37 11.5 12 83 4
116351.0700 14 26 37 11.5 12 83 4
116351.0800 16 32 43 15.5 16 92 5
116351.0900 18 32 43 15.5 16 92 5
116351.1000 20 38 53 19.5 20 104 5
116351.1100 22 38 53 19.5 20 104 5
116351.1200 25 45 64 24 25 121 5

116450 High-performance roughing end mill FUTURO
HSS-PM TiAIN λ: 45º Z
γ: 3º 3-6
P M K N S
Cu Ti-Ni
AI≥4%Si
Type NRF-HSC, with fine pitch, TiAlN, powder-HSS ASP 60, with Weldon flat, angle of twist 45°,
centre cut.
Application
Especially suitable for materials with hardness up to 45 HRC, alloyed steels, carbon steels, pre-
hardened steels, stainless steels, titanium and Inconel etc.
Tolerance: d2: h6
Order ID d1 l2 d2 l1 d3 l3 Z
mm mm mm mm mm mm
116450.0100 4 11 6 57 - - 3
116450.0200 5 13 6 57 - - 4
116450.0300 6 13 6 57 - - 4
116450.0400 7 16 10 66 - - 4
116450.0500 8 19 10 69 - - 4
116450.0600 9 19 10 69 - - 4
116450.0700 10 22 10 72 9.5 31 4
116450.0800 12 26 12 83 11.5 37 4
116450.0900 14 26 12 83 - - 5
116450.1000 16 32 16 92 15 44 5
116450.1100 18 32 16 92 - - 6
116450.1200 20 38 20 104 19 54 6
116450.1300 25 45 25 121 24 63 6
116400 Roughing end mill FUTURO

HSS-E λ: 30º Z
Co8 γ: 12º 3-6
< Ø 20mm > Ø 21mm
P K N
Cu

Type NR, HSSE-Co8, angle of twist 30°, up to 20 mm 2 teeth to the centre, DIN 844.
Tolerances: d1: js12 ; d2: h6
Order ID d1 l2 d2 l1 Z Order ID d1 l2 d2 l1 Z
mm mm mm mm mm mm mm mm
116400.0100 6 13 6 57 3 116400.0900 18 32 16 92 4
116400.0200 7 16 10 66 3 116400.1000 20 38 20 104 4
116400.0300 8 19 10 69 3 116400.1100 22 38 20 104 5
116400.0400 9 19 10 69 3 116400.1300 25 45 25 121 5
116400.0500 10 22 10 72 4 116400.1400 26 45 25 121 6
116400.0600 12 26 12 83 4 116400.1500 28 45 25 121 6
116400.0700 14 26 12 83 4 116400.1600 30 45 25 121 6
116400.0800 16 32 16 92 4
Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 441
