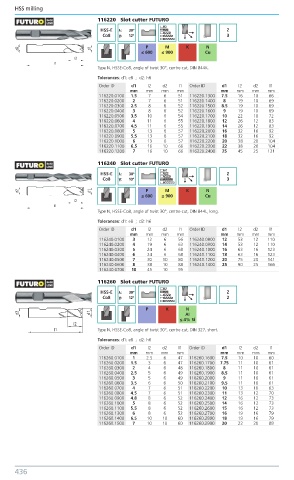

Page 445 - Benma | Blue book 5.0

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
116220 Slot cutter FUTURO

HSS-E λ: 30º Z
Co8 γ: 12º 3
P M K N
≤ 600 ≤ 900 Cu

Type N, HSSE-Co8, angle of twist 30°, centre cut, DIN 844K.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116220.0100 1.5 7 6 51 116220.1300 7.5 16 10 66
116220.0200 2 7 6 51 116220.1400 8 19 10 69
116220.0300 2.5 8 6 52 116220.1500 8.5 19 10 69
116220.0400 3 8 6 52 116220.1600 9 19 10 69
116220.0500 3.5 10 6 54 116220.1700 10 22 10 72
116220.0600 4 11 6 55 116220.1800 12 26 12 83
116220.0700 4.5 11 6 55 116220.1900 14 26 12 83
116220.0800 5 13 6 57 116220.2000 16 32 16 92
116220.0900 5.5 13 6 57 116220.2100 18 32 16 92
116220.1000 6 13 6 57 116220.2200 20 38 20 104
116220.1100 6.5 16 10 66 116220.2300 22 38 20 104
116220.1200 7 16 10 66 116220.2400 25 45 25 121
116240 Slot cutter FUTURO
HSS-E λ: 30º Z
Co8 γ: 10º 3

P M K N
≤ 600 ≤ 900 Cu

Type N, HSSE-Co8, angle of twist 30°, centre cut, DIN 844L, long.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116240.0100 3 12 6 56 116240.0800 12 53 12 110
116240.0200 4 19 6 63 116240.0900 14 53 12 110
116240.0300 5 24 6 68 116240.1000 16 63 16 123
116240.0400 6 24 6 68 116240.1100 18 63 16 123
116240.0500 7 30 10 80 116240.1200 20 75 20 141
116240.0600 8 38 10 88 116240.1400 25 90 25 166
116240.0700 10 45 10 95
116260 Slot cutter FUTURO
HSS-E λ: 30º Z
Co8 γ: 12º 2

P K N
AI
≤ 4% Si
Type N, HSSE-Co8, angle of twist 30°, centre cut, DIN 327, short.
Tolerances: d1: e8 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116260.0100 1 2.5 6 47 116260.1600 7.5 10 10 60
116260.0200 1.5 3 6 47 116260.1700 7.75 11 10 61
116260.0300 2 4 6 48 116260.1800 8 11 10 61
116260.0400 2.5 5 6 49 116260.1900 8.5 11 10 61
116260.0500 3 5 6 49 116260.2000 9 11 10 61
116260.0600 3.5 6 6 50 116260.2100 9.5 11 10 61
116260.0700 4 7 6 51 116260.2200 10 13 10 63
116260.0800 4.5 7 6 51 116260.2300 11 13 12 70
116260.0900 4.8 8 6 52 116260.2400 12 16 12 73
116260.1000 5 8 6 52 116260.2500 14 16 12 73
116260.1100 5.5 8 6 52 116260.2600 15 16 12 73
116260.1300 6 8 6 52 116260.2700 16 19 16 79
116260.1400 6.5 10 10 60 116260.2800 18 19 16 79
116260.1500 7 10 10 60 116260.2900 20 22 20 88

436 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
