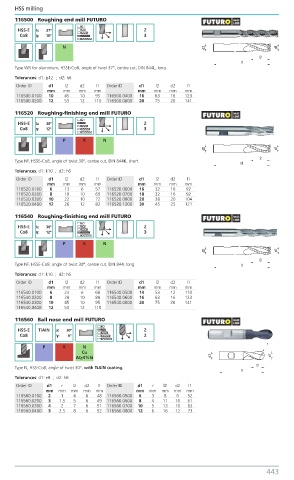

Page 452 - Benma | Blue book 5.0

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
116500 Roughing end mill FUTURO

HSS-E λ: 37º Z
Co8 γ: 16º 3
N

Type WR for aluminium, HSSE-Co8, angle of twist 37°, centre cut, DIN 844L, long.
Tolerances: d1: js12 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116500.0100 10 45 10 95 116500.0400 16 63 16 123
116500.0200 12 53 12 110 116500.0600 20 75 20 141
116520 Roughing-finishing end mill FUTURO
HSS-E λ: 30º Z
Co8 γ: 12º 3

P K N

Type NF, HSSE-Co8, angle of twist 30°, centre cut, DIN 844K, short.
Tolerances: d1: k10 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116520.0100 6 13 6 57 116520.0600 16 32 16 92
116520.0200 8 19 10 69 116520.0700 18 32 16 92
116520.0300 10 22 10 72 116520.0800 20 38 20 104
116520.0400 12 26 12 83 116520.1200 30 45 25 121
116540 Roughing-finishing end mill FUTURO
HSS-E λ: 30º Z
Co8 γ: 12º 3
P K N

Type NF, HSSE-Co8, angle of twist 30°, centre cut, DIN 844, long.
Tolerances: d1: k10 ; d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
116540.0100 6 24 6 68 116540.0500 14 53 12 110
116540.0200 8 38 10 88 116540.0600 16 63 16 123
116540.0300 10 45 10 95 116540.0800 20 75 20 141
116540.0400 12 53 12 110

116560 Ball nose end mill FUTURO
HSS-E TiAIN λ: 30º Z
Co8 γ: 6º 2
P K N
Cu
AI≥4%Si
Type N, HSS-Co8, angle of twist 30°, with TiAlN coating.
Tolerances: d1: e8 ; d2: h6
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm
116560.0100 2 1 4 6 48 116560.0500 6 3 8 6 52
116560.0200 3 1.5 5 6 49 116560.0600 8 4 11 10 61
116560.0300 4 2 7 6 51 116560.0700 10 5 13 10 63
116560.0400 5 2.5 8 6 52 116560.0800 12 6 16 12 73

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 443
