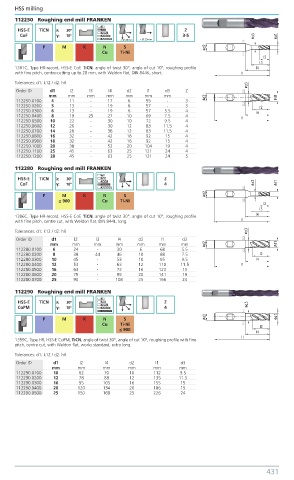

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
112250 Roughing end mill FRANKEN

HSS-E TiCN λ: 30º Z
CoF γ: 10º 3-5
< Ø 28mm > Ø 29mm
P M K N S
Cu Ti-Ni

1381C, Type HR-record, HSS-E CoF, TiCN, angle of twist 30°, angle of cut 10°, roughing profile
with fine pitch, centre-cutting up to 28 mm, with Weldon flat, DIN 844K, short.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
112250.0100 4 11 - 17 6 55 - 3
112250.0200 5 13 - 19 6 57 - 3
112250.0300 6 13 - 19 6 57 5.5 4
112250.0400 8 19 25 27 10 69 7.5 4
112250.0500 10 22 - 30 10 72 9.5 4
112250.0600 12 26 - 30 12 83 11.5 4
112250.0700 14 26 - 36 12 83 11.5 4
112250.0800 16 32 - 42 16 92 15 4
112250.0900 18 32 - 42 16 92 15 4
112250.1000 20 38 - 52 20 104 19 4
112250.1100 25 45 - 63 25 121 24 4
112250.1200 28 45 - 63 25 121 24 5
112280 Roughing end mill FRANKEN
HSS-E TiCN λ: 30º Z
CoF γ: 10º 4

P M K N S
≤ 900 Cu Ti-Ni

1386C, Type HR-record, HSS-E CoF, TiCN, angle of twist 30°, angle of cut 10°, roughing profile
with fine pitch, centre cut, with Weldon flat, DIN 844L, long.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm
112280.0100 6 24 - 30 6 68 5.5
112280.0200 8 38 44 46 10 88 7.5
112280.0300 10 45 - 53 10 95 9.5
112280.0400 12 53 - 63 12 110 11.5
112280.0500 16 63 - 73 16 123 15
112280.0600 20 75 - 89 20 141 19
112280.0700 25 90 - 108 25 166 24
112290 Roughing end mill FRANKEN
HSS-E TiCN λ: 30º Z
CoPM γ: 10º 4

P M K N S
Cu Ti-Ni
≤ 900
1359C, Type HR, HSS-E CoPM, TiCN, angle of twist 30°, angle of cut 10°, roughing profile with fine
pitch, centre cut, with Weldon flat, works standard, extra long.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l4 d2 l1 d3
mm mm mm mm mm mm
112290.0100 10 62 70 10 112 9.5
112290.0200 12 78 88 12 135 11.5
112290.0300 16 95 105 16 155 15
112290.0400 20 120 134 20 186 19
112290.0500 25 150 168 25 226 24
